Product Features
Supports Multiple Video Formats: Compatible with HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI, HDMI, DVI, and DisplayPort.
High Signal Integrity: Maintains 75Ω impedance; low insertion and return loss.
Hybrid Signal Transmission: Combines video, power, Ethernet, and control in one unit.
Flexible & Modular: Customizable channels and connectors (e.g., BNC, SMA).
Long Service Life: Designed for millions of revolutions without signal degradation.
Compact Design: Easy to install in space-limited applications such as UAV pods and robotic platforms.

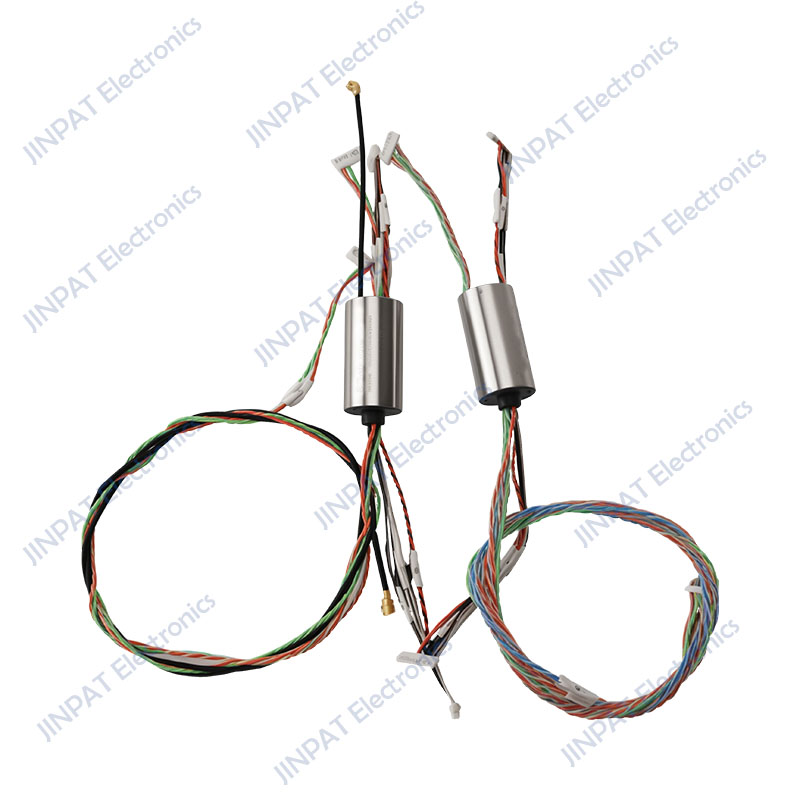

SDI Slip Rings
JINPAT SDI Slip Rings are engineered for the transmission of high-definition serial digital signals, including HD-SDI, 3G-SDI, 6G-SDI, and up to 12G-SDI. They deliver exceptional signal integrity with ultra-low insertion loss, making them an ideal choice for professional broadcast, live event production, and video monitoring applications. Even when combined with channels for power, Ethernet, or control signals, they sustain reliable performance. Built with a standard 75Ω impedance and equipped with BNC or SMA connectors, they ensure full compliance with industry standards.
SDI Slip Rings | |||||||||
| Typical Model | SDI |
Circuits | Voltage | Size |
Supports Other Signal Type | ||||
| HD-SDI | 3G-SDI | 6G-SDI |
12G-SDI | Outer Diameter | Length | ||||
LPMS-05D-0201-SD1 |
1 |
2*1A | 0-48V | Ø5.5 | 9.6 |
/ | |||
LPMS-12U-08S-01SD1 |
1 | / |
0-48V | Ø6.5 | 17.4 | 8* Common Signal | |||
LPMS-18-0204-0201-01SD1-05S |
1 | 2 (spare) + 2 × 4A | 0-48V | Ø7.9 | 22 | 5* Common Signal | |||
LPM-18-0601-02SD1 |
2 | 6*1A | 0-110V | Ø11.2 | 23.5 | / | |||
LPM-24-18S-01SDI |
1 | / | 0-110V | / | |||||
LPM-12YS-03SD1 |
3 | / | 0-110V | Ø13.30 | 30 | / | |||
LPC-06A-02SD1 |
2 | / | 0-220V | Ø22 | 19.2 | / | |||
| LPC-24-0405-05S-01SD1 | 1 | 4*5A | 0-220V | Ø30 | 42.3 |
1* RS485 ； 2* Common Signal |
|||
| LPC-76-0320-20S-01E3-01SD1-IP51 | 1 | 3*20A | 0-220V | Ø35.5 | 122 |
1*Gigabit Ethernet 20* Common Signal |
|||
LPMS-08A-0301-SD2-01S |
1 | 3*1A | 0-48V | Ø 9 | 11.7 | 1*I2C | |||
LPMS-10B-0501-01SD2-01S |
1 | 5*1A | 0-48V |
Ø10 |
13.6 | / | |||
LPM-12YU-0702-01SD2 |
1 | 7*2A | 0-110V | Ø12.5 | 25.2 | / | |||
LPM-18-1202-01SD2 |
1 | 12*2A | 0-110V | Ø12.8 | 23.5 | / | |||
| LPM-30B-0602-01E2-10S-02SD2 | 2 | 6*2A | 0-110V | Ø16 | 37 |
1*Fast Ethernet 1*CAN Signal |
|||
LPC-06-01SD2 |
1 | / | 0-220V | Ø23 | 26 | / | |||
LPC-24A-04SD2 |
4 | / | 0-220V | Ø22 | 42.3 | / | |||
| LPC-56A-0405-02SD2-01E3-23S | 2 | 4*5A | 0-220V | Ø25 | 85.7 |
1*Gigabit Ethernet 23* Common Signal |
|||
LPC-24T-0202-18S-02SD3 |
2 | 2*2A | 0-220V | Ø24.8 | 72.1 | 18*Common Signal | |||
LPCC-01B |
1 | 1 | / | / | Ø6.5 | 24.6 | / | ||
LPCC-01C |
1 | 1 | / | / | Ø13.6 | 35.9 | / | ||
LPCC-01D |
1 | 1 | / | / | Ø12.4 | 30.46 | / |
||

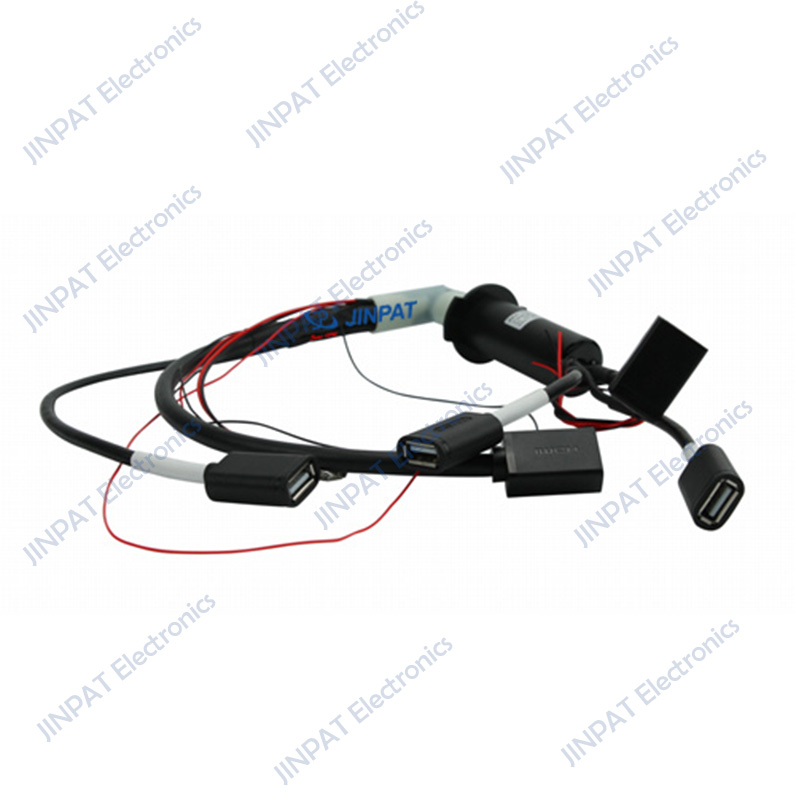

HDMI Slip Rings

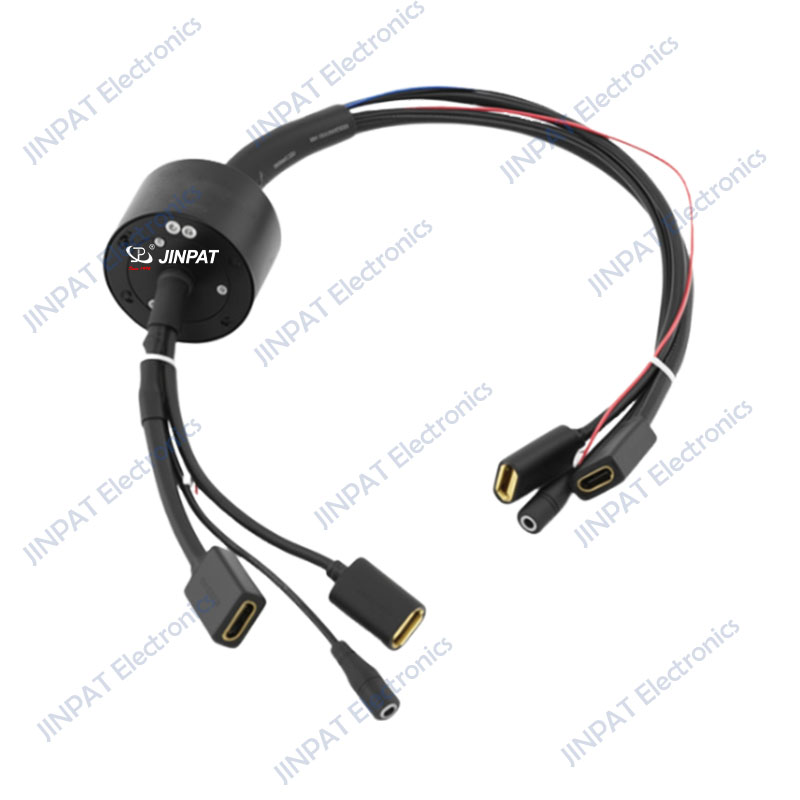

Designed for uninterrupted transmission of uncompressed HD video and audio, JINPAT HDMI Slip Rings support HDMI 1.4 and HDMI 2.0, achieving resolutions up to 4K at 60Hz. Perfect for multimedia installations, medical imaging devices, and interactive display systems, they feature minimal crosstalk, high operational stability, and versatile mounting configurations. Optional integration with power and other signal circuits further enhances system flexibility.
HDMI Slip Rings | ||||||||
| Typical Model | HDMI |
Circuits |
Voltage | Size | Supports Other Signal Type | |||
| HDMI1.2 | HDMI1.4 |
HDMI2.0 | Outer Diameter | Length | ||||
| LPC-36A-10S-HDMI-U2 | 1 | / | 0-220V | Ø22 | 57.3 |
1*USB2.0 10* Common Signal |
||
LPM-30B-HDMI-U2 |
1 | / | 0-110V | Ø16 | 37 | 1*USB2.0 | ||
LPM-30B-01HD |
1 | / | 0-110V | Ø16 | 37 | / | ||
LPM-30-01HD |
1 | / | 0-110V | Ø16 | 37 | / | ||

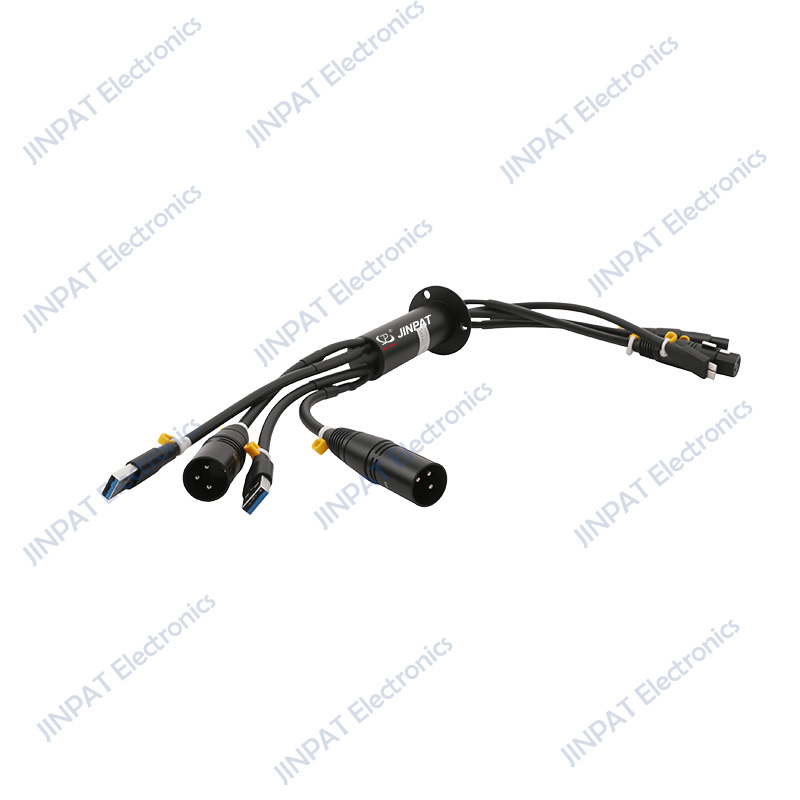

DisplayPort Slip Rings
JINPAT DisplayPort Slip Rings handle high-bandwidth digital video transfer with resolutions reaching up to 8K, depending on the configuration. They are well-suited for demanding applications such as industrial imaging, simulation platforms, and next-generation display technologies. These slip rings preserve signal clarity across rotary joints and can be tailored to include additional communication or power channels such as USB, Ethernet, or DC power.
DisplayPort Slip Rings | |||||||
| Typical Model | DisplayPort | Circuits |
Voltage | Size |
Supports Other Signal Type | ||
DP1.0 |
DP1.2 | Outer Diameter | Length | ||||
LPM-30-DP |
/ | 1 | / |
0-110V |
Ø16 |
37 | / |
LPC-36A-01DP |
/ | 1 | / | 0-220V | Ø22 | 57.3 | / |
LPC-12YT-01U3-01DP |
1 | / | / | 0-220V | Ø24.8 | 74.5 | 1*USB3.0 |
LPC-0202-01U3-01DP |
1 | / | 2*2A | 0-220V | Ø25 | 86 | 1*USB3.0 |
LPC-12T-0202-01U2-DP |
1 | / | 2*2A | 0-220V | Ø24.8 | 74 | 1*USB3.0 |
LPC-24YT-0902-01U3-01DP |
1 | / | 9*2A | 0-220V | Ø25 | 88.3 | 1*USB3.0 |
