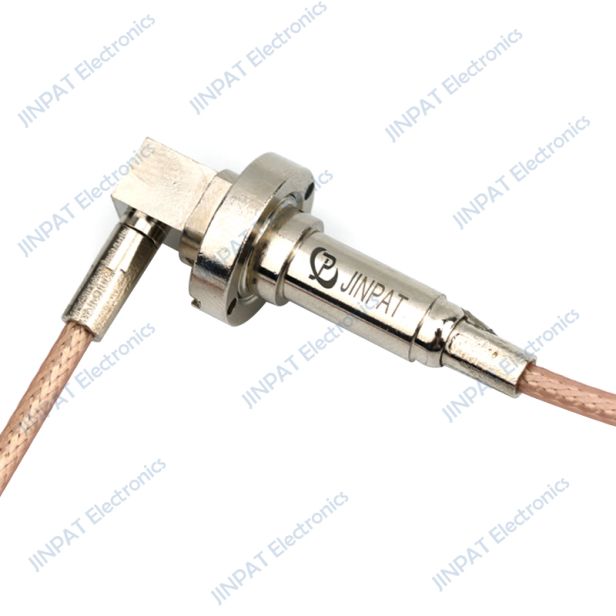

JINPAT LPCC High Frequency Slip Ring Series: Designed to transmit HDMI and RF signals based on varying characteristic impedances. The LPCC series can be combined with the LPC-T series. The LPCC-01A model is a standard coaxial connector, known for its compact design, exceptionally long lifespan, and maintenance-free operation, eliminating the need for lubricants. It is capable of transmitting both analog signals and high-speed digital signals.
| Specifications | |||
| Interface Tpe | SMA/MCX/SMB/N/other | Axial Load On Interface,Max |
±2N |
Frequenc Range |
DC-3GHz | Radial Load On Interface,Max. | ±2N |
| Impedance | 50Ohm |
Body Material | Nickel-plated |
| Cable Length | 250mm/250mm(or As Per Order) | Insulator Material | PTFE |
| VSWR,Max. | 1.6 |
Marking | Adhesive Label |
| vswr wow | 0.1 |
Weight,approx | 11.5g |
| Insertion Loss,Max | 0.4dB(Without Cable) 1.4dB@250/250mm | IP Protection Level | IP40 |
| Insertion loss WOW | 0.1dB |
Operation Temperature | -45~+80°C |
| Peak Power,Max. | 1000W | Storage Temperature | -55~+85°C |
| Average Power,Max. | 20W | Humidit(Operation) | 95％ |
| Phase WOW | 1° | Humidit(St) | 95％ |
| Rotating Speed,Max. | 80rpm | Starting Torque | 2Ncm Max |
| Life time,Min. |
2 Million Revolutions | Continuous Rotational Torque | 2Ncm Max |
LPCC-02A Product Outline Diagram
