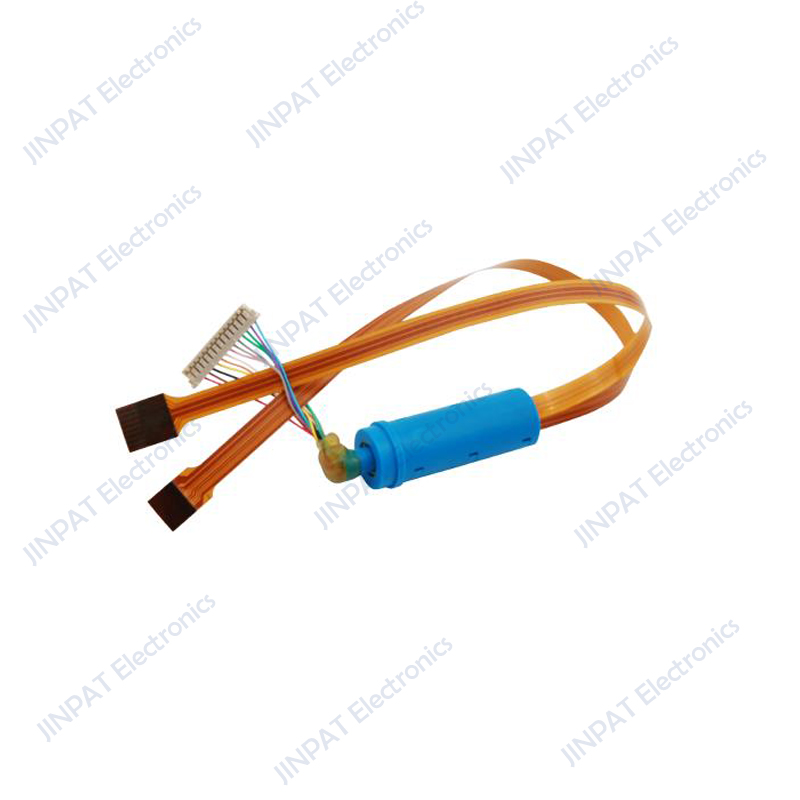

LPM-18C-0202-09S
HD conductive slip rings are based on high-resolution multimedia interfaces and are used for the rotary transmission of uncompressed audio and video signals. HD video slip rings include HDMI slip rings, SDI slip rings, 1080P conductive slip rings, etc., which are widely used in new technology fields such as radio and TV, photography, video, and virtual reality.
| Electrical & Electronics | Mechanical | Enviromental | |||
| Channel number | 11CKT |
Working speed |
0~60rpm |
Working temperature |
-20°C~+60°C |
|
Working current |
9 circuits* signal 1A/ 2 circuits * 2A (customized) |
Contact material |
Precious metal | Working humidity | ≤60%RH |
| Working voltage | 48VAC/DC |
Shell material |
Engineering plastics |
IP protection grade |
IP40 |
|
Withstand voltage strength |
≥100VAC@50Hz(S) | Torque | ≤2.5mNm | Others | |
|
Insulation resistance |
≥10MΩ@100VDC(S) |
Conductor specification |
AWG30# teflon conductor / FPC flat cable (customized) |
Life Span |
10 million (customized) |
|
Dynmaic resistance fluctuation value |
≤35mΩ (1 mΩ at minimum) |
Wire Length |
Rotor: 33+2/-0mm Stator: 180/150±2 mm (customized) |
||
