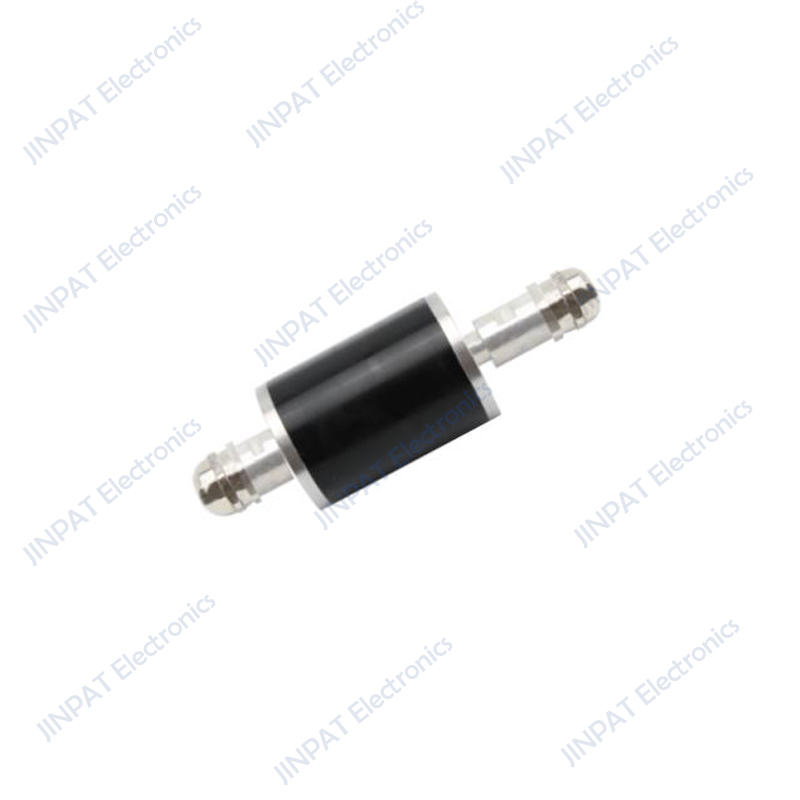

High level slip rings for protection
Jingpei's new slip ring has an extremely high protection level of IP69, allowing it to fulfil the needs of special vehicles that can operate in particularly harsh environments.
Among Jingpei Electronics' customised slip rings, there are many products that need to operate in harsh environments. Different scenarios require different protection levels to cope with the market demand for such products that require high levels of protection.
When Jingpei Electronics updated its cap-type slip ring products this time, it specifically added two series of high protection products, LPC-54 and LPC-65.
In order to make it easier to distinguish, Jingpei used to call products from IP54 to IP67 as slip rings with high protection level or higher protection level, and categorise products from IP68 and above as series products with very high protection level.
| Electrical & Electronics | Mechanical | Enviromental | |||
|
Number of Circuits |
6CKT | Rotating Speed | 0~60 rpm | Temperature | -20℃~+60℃ |
| Current | 5A | Contact Material | Gold-to-gold | Humidity | ≤60%RH |
| Voltage | 0~48VAC/DC | Housing Material | Aluminum alloy | Protection Grade | IP68 |
| Dielectric Strength | ≥200VAC@50Hz | Torque | / | Others | |
| Insulation Resistance | ≥100MΩ@200VDC | Wire Type | AWG22# | Life Span | Can be customized |
| Electrical Noise | ≤35mΩ | Wire Length |
Rotor: 250±5mm Stator: 250±5mm |
||
