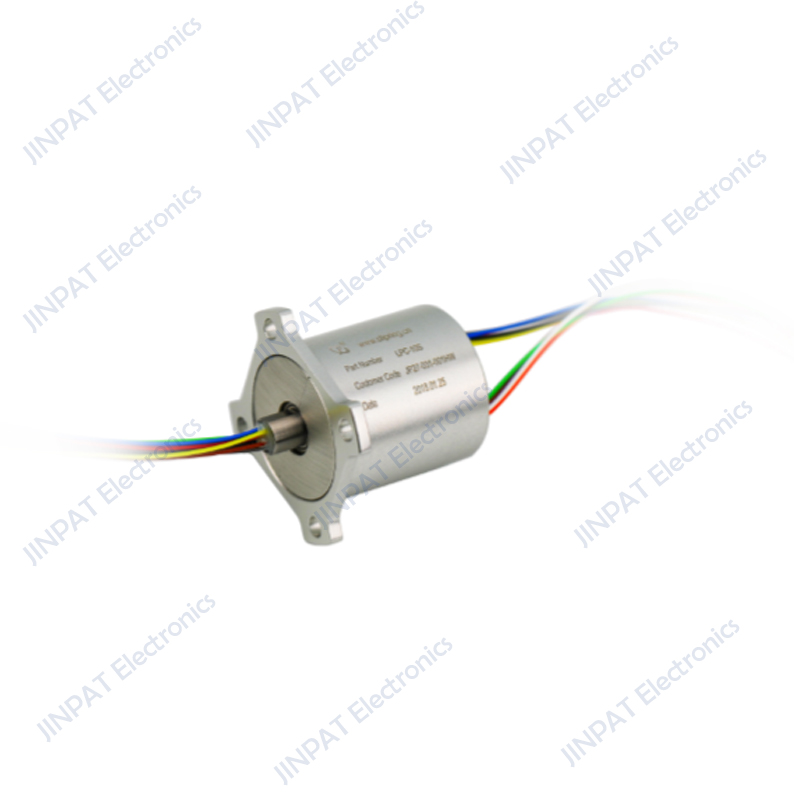

LPC-10S Long-Life Sliding Rings
High-speed and long-life conductive slip rings are used in many advanced and high-precision equipment, which are precision conductive slip rings developed by various scientific research institutes.
LPC-10S
High-speed, long-life conductive slip rings are used in many advanced and high-precision equipment and are precision conductive slip rings developed by various scientific research institutes.
Precision slip rings require a high degree of reliability, quality and consistency, which is planned for during the product and service design phase.
Advantages
High and low temperature resistance
High vibration resistance, high impact
Isolation greater than 60dB, extremely low signal transmission loss
The contact surface mirror operation technology reaches the world's leading level
Features
The long-life slip ring can reach more than 270 million rpm
Under test conditions 5000/rpm
Free maintenance during the life cycle
| Electrical & Electronics | Mechanical | Enviromental | |||
|
Number of Circuits |
10 CKT |
Rotating Speed |
0~1200 rpm | Temperature | -10℃~+80℃ |
| Current | 1A |
Contact Material |
Gold-to-gold | Humidity | ≤60%RH |
| Voltage | 0~20VDC |
Housing Material |
Aluminum alloy | Protection Grade | IP40 |
|
Dielectric Strength |
≥500VAC@50Hz | Torque | / | Others | |
|
Insulation Resistance |
≥100MΩ@500VDC | Wire Type | AWG28# | Life Span | 270 million rpm |
|
Dynamic Contact Resistance |
≤30mΩ | Wire Length |
Rotor: 250±5mm Stator: 250±5mm |
||
