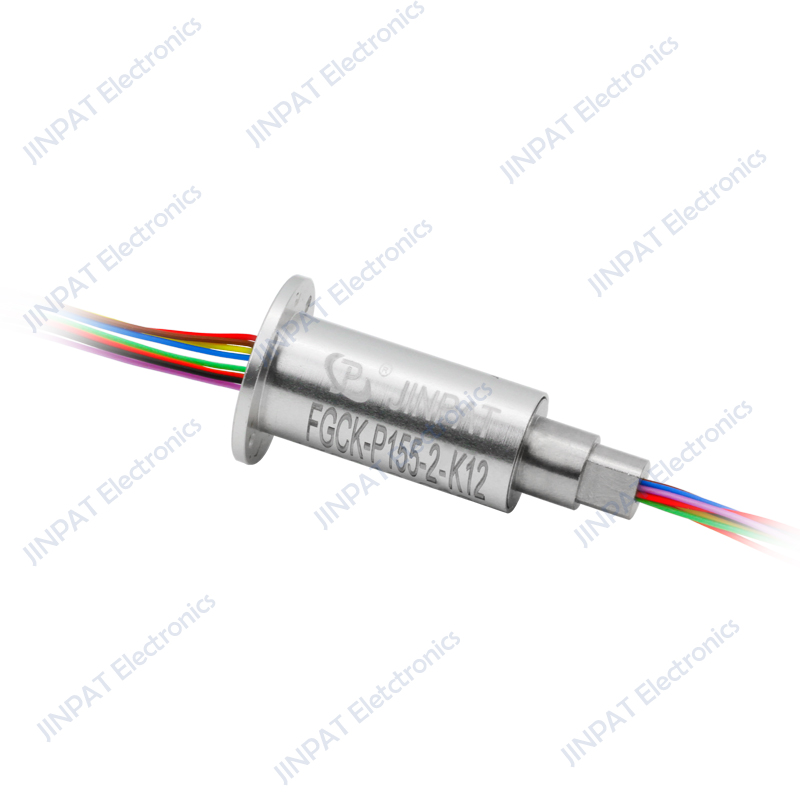

FGCK-P155-2-K12
The high-temperature thermocouple slip ring uses core materials imported from Germany and Japan. It can be used in high temperature environments to rotate 360° to transmit current and thermocouple signals. It can work stably in high temperature environments up to 100~250°C for a long time, mainly used for hot rollers, heating devices, etc., high temperature environment, withstood long-term complex field practice test, stable transmission performance and excellent quality
| Electrical & Electronics | Mechanical | Enviromental | |||
| Number of Circuits | 8CKTA |
Rotating Speed |
0~18000 rpm | Temperature | -55℃~+120℃ |
| Current | 2A |
Contact Material |
Gold-to-gold | Humidity | ≤60%RH |
| Voltage | 40VAC/DC |
Housing Material |
Engineering plastic | Protection Grade | IP40 |
|
Dielectric Strength |
≥500V@400Hz | Wire Type | / |
Others | |
|
Insulation Resistance |
≥600MΩ@200V | Life Span | / | ||
| Electrical Noise | ≤10mΩ(Signal Ring) | Wire Length |
Rotor: 250±5mm Stator: 250±5mm |
||
