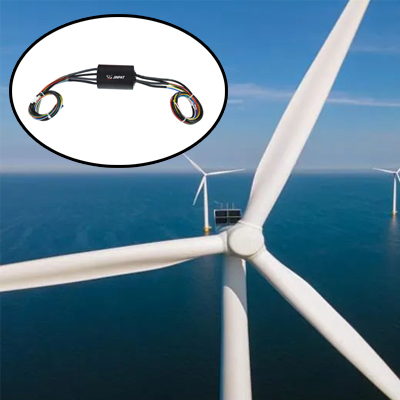

The Mechanics of JINPAT LPT Wind Turbine Slip Rings

In the drive systems of modern wind turbines, the stable and efficient transmission of power and signals is crucial for intelligent unit management. JINPAT LPT through-bore slip ring, specifically engineered for the wind power industry, effectively addresses challenges such as signal attenuation and unstable power transmission during rotation through its unique structural design and rigorous material selection standards.

Key Specifications:

1. Structure and Installation: The product features a 20.1mm through-bore design, providing ample space for the generator main shaft or sensor cables; its compact dimensions significantly optimize internal layout.

2. Power and Signal Reliability: It integrates 12 power circuits (16A) to ensure the high-energy output required by blade drive systems, while also incorporating 16 precision signal circuits to meet the demands of complex feedback and control systems.

3. Interference Resistance: To ensure reliable operation in strong electromagnetic environments, we utilize high-spec AWG14 tinned, PTFE-insulated, twisted-pair shielded cables, effectively blocking external noise and safeguarding data transmission integrity.

4. All-Weather Performance: The LPT through-bore slip ring maintains stable mechanical performance in extreme climates ranging from -20°C to +60°C. With an IP40 protection rating and humidity resistance of ≤60% RH, the unit ensures a long service life across various installation environments.

Through precision break-in processes and highly wear-resistant brush wire technology, JINPAT is dedicated to delivering superior rotary transmission performance for the wind power industry.
