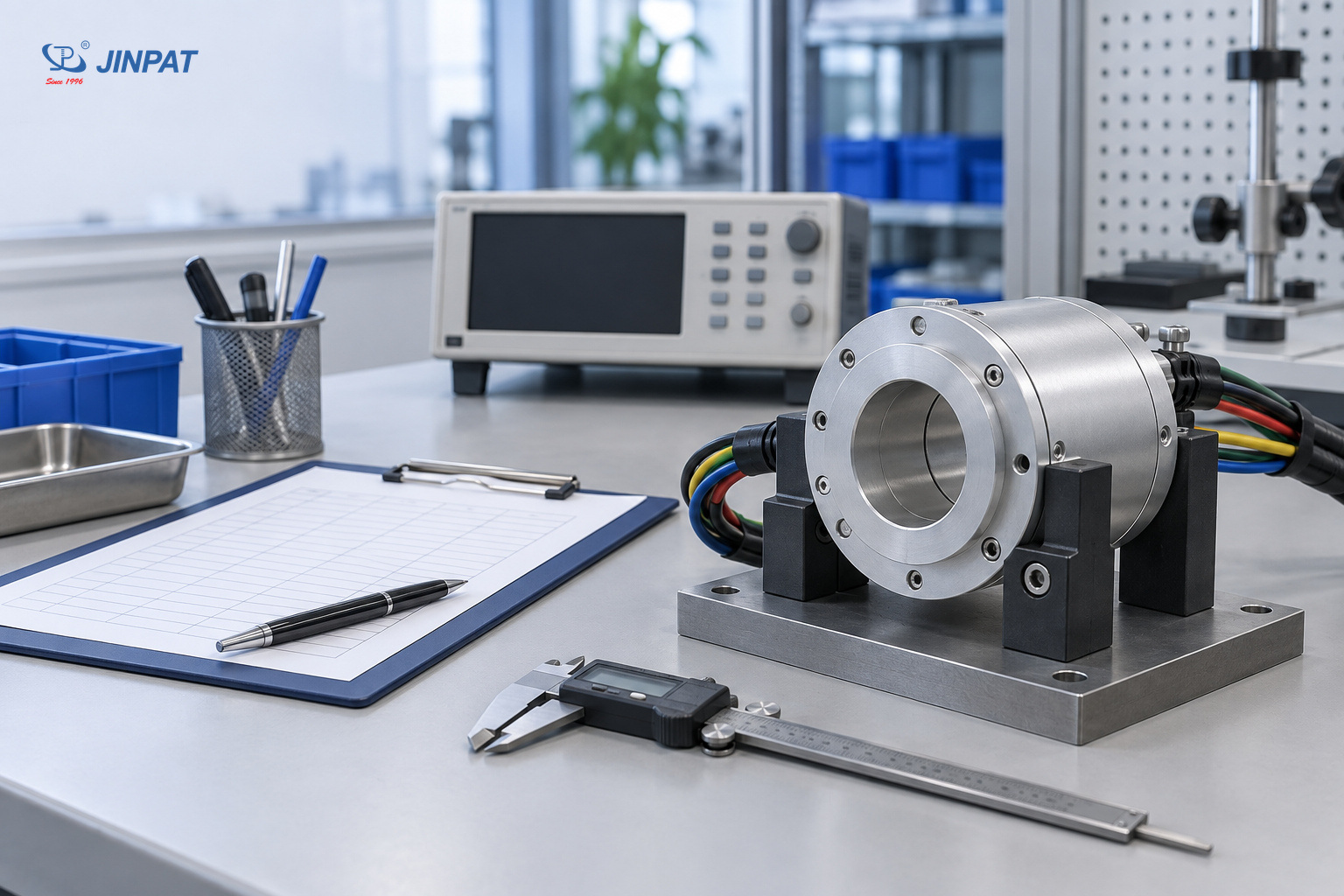

Slip Ring Testing and Acceptance Requirements Before Ordering

Define slip ring testing requirements before ordering by agreeing what will be checked, under which conditions, against which acceptance limits and with what records. Separate catalog ratings from test evidence, and distinguish design qualification from checks on delivered units. A request to “test everything” is not an actionable acceptance plan.

For OEM validation engineers, the objective is to make the evidence needed for approval explicit before the quotation and design are finalized. The test scope should reflect the selected configuration and application risks, without assuming that every catalog entry already represents an agreed inspection or qualification result.

Separate ratings, qualification and delivery acceptance

Treat a product rating as a specified characteristic, qualification as evidence for a defined design and set of conditions, and delivery acceptance as the agreed basis for accepting the supplied units. These roles can be related, but they are not interchangeable. Specify which evidence is needed at each project stage.

JINPAT's through-bore selection document lists dielectric strength, insulation resistance and dynamic contact resistance as separate entries. That supports treating them as distinct characteristics during a technical review. The selection document itself is not an inspection report for an ordered unit or proof of qualification for a particular application.

Use these distinctions when discussing scope. Do not assume a qualification activity will be repeated on every delivered unit, or that a routine inspection covers the full application.

Turn each requirement into a testable agreement

For each required check, define the purpose, configuration, method, operating conditions, acceptance criterion and required record. Assign responsibility for performing and reviewing it, and identify when the result is needed. If the acceptance limit is unresolved, record that gap before ordering rather than leaving “pass” open to interpretation.

Where a customer specification or applicable standard defines the method, identify its edition and relevant scope in the agreement. Do not insert a standard merely because its title sounds related.

A hypothetical acceptance-plan entry might require checking a named interface dimension against the approved drawing revision and recording the result in the agreed report. The dimension and tolerance must come from that drawing, not from an illustrative article. This is a planning example, not a customer record.

Distinguish continuity, insulation resistance and hipot checks

Specify electrical checks by their purpose rather than using “insulation test” as a catch-all term. Continuity concerns intended connections; insulation resistance and dielectric withstand address different insulation questions. Agree the applicable method and limits for the selected assembly. None of these checks, on its own, demonstrates every aspect of operation during rotation.

HIOKI's explanation of insulation resistance testing distinguishes measuring resistance at a test voltage from checking dielectric strength through withstand-voltage testing. A hipot test should therefore not be treated as another name for an insulation-resistance measurement.

In the RFQ discussion, ask which circuits, isolation boundaries and assembly state the proposed method covers. Clarify how connected components and interfaces are handled by the approved procedure. This article does not prescribe test voltages, durations or connection instructions; those belong to a suitable procedure executed by qualified personnel.

For resistance-related requirements, distinguish a stated resistance characteristic from any change or interruption criterion during motion. If dynamic performance matters, its measurement conditions and acceptance basis must be defined separately. Do not turn an ambiguous catalog entry into a universal acceptance threshold.

Test function under the conditions that matter

Specify functional verification around the actual use of the assembly, including relevant motion and connected equipment where required. A connection check at rest does not establish all performance during rotation. Identify the functions to observe and the criterion for acceptable operation, while keeping the selected test scope proportionate to the application.

For a signal integrity test, define the interface and intended performance using the signal requirements document. Agree the relevant cable arrangement, endpoints, operating state and evidence to record. Avoid a vague request for “stable communication” without an observable acceptance basis.

For motion-related checks, reference the approved motion profile instead of inventing a separate speed or reversal sequence in the test plan. Similarly, any dimensional or fit check should reference the approved mechanical interface information.

Decide whether a supplier bench check, an OEM integration check or both are needed. The distinction matters because the full machine may include interfaces beyond the supplied slip ring. Record which party verifies each boundary rather than assuming one successful bench observation covers the completed installation.

Define environmental verification and its limits

When environmental verification is required, agree the exposure, operating state, sequence and post-test acceptance checks before ordering. Distinguish a vibration test or environmental qualification from routine inspection. Define whether existing evidence is applicable or whether additional evaluation is required for the proposed configuration, rather than assuming a general capability statement closes the question.

Use the environmental requirement attachment to identify the relevant conditions. If the customer requires vibration, shock, temperature or ingress evaluation, specify the applicable method and evidence instead of requesting an undefined “harsh-environment test.”

Clarify whether function must be monitored during exposure, checked afterward or both. These are questions for the agreed test plan; they are not claims that JINPAT performs every listed activity as standard.

Do not convert a short verification exercise into a lifetime guarantee. Where the application requires endurance evidence, define the operating sequence, duration or cycle basis and acceptance criteria with the responsible engineers. A result applies to its documented conditions and configuration, not automatically to every product in a series.

Agree reports and exceptions before releasing the order

Specify the inspection report or other acceptance evidence required with the order, including identification, applicable revisions, results and approved deviations. Agree who reviews the evidence and what prevents release. This makes the final decision traceable and reduces the chance that missing documentation is discovered only after the equipment is waiting for installation.

Ask whether the record will contain measured results, a conformity statement or another agreed form of evidence. These outputs serve different purposes; define what the project actually needs. Where traceability or calibration information is required, include it in the document requirements rather than assuming it will be supplied.

Review exceptions against the original acceptance criteria. A failed or omitted check should trigger an explicit disposition, not an undocumented change in what “accepted” means. If a design revision follows testing, confirm whether the earlier evidence remains applicable.

Discuss the proposed acceptance plan with JINPAT before the quotation and design basis are finalized. Use the OEM slip ring specification checklist before RFQ to connect that plan with the complete application requirements. Keep the outcome explicit: which checks are agreed, which evidence will be supplied and which questions remain open before ordering.
