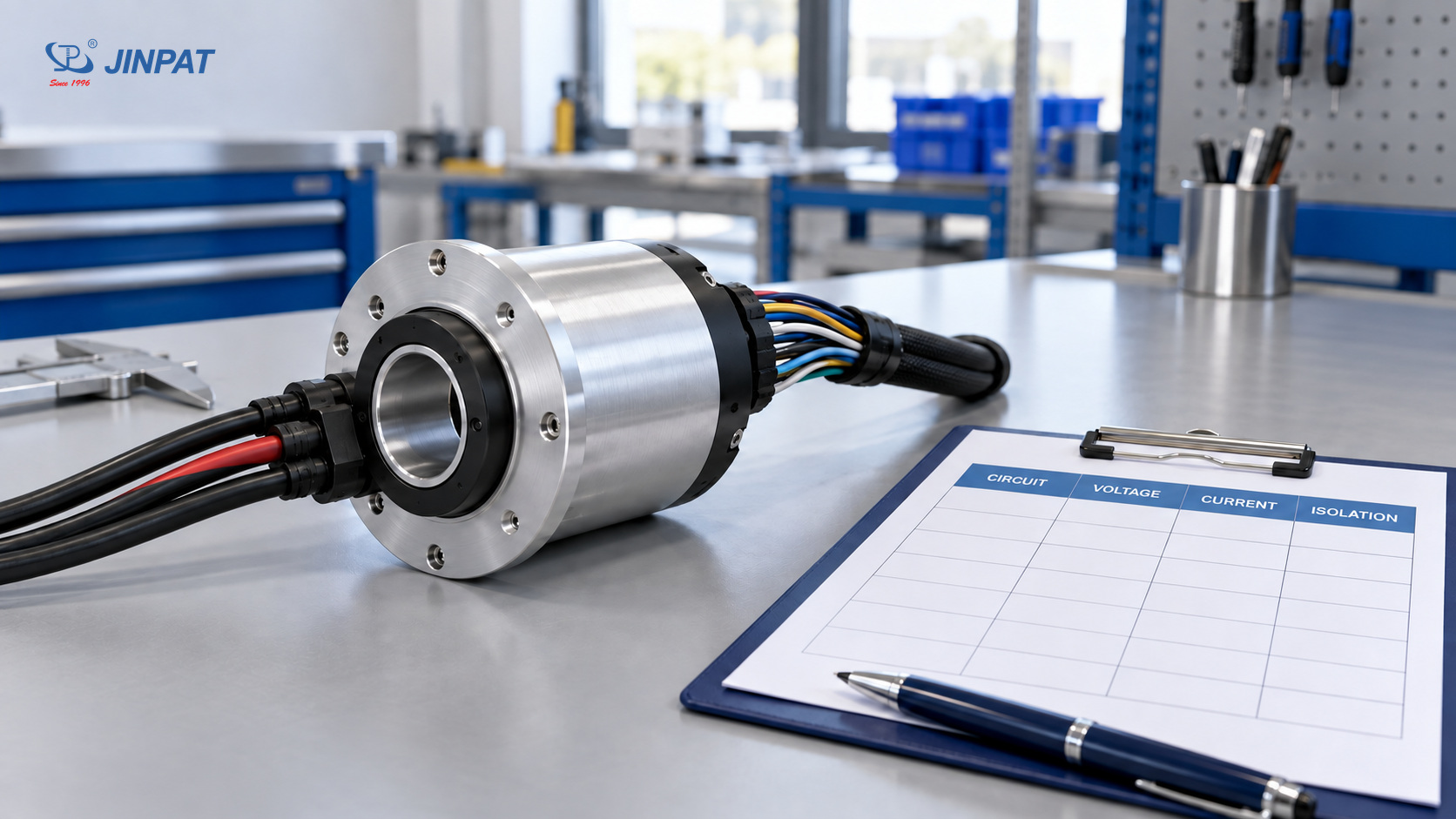

How to Specify Slip Ring Electrical Circuits: Voltage, Current, Inrush, and Isolation

A useful slip ring electrical specification describes each conductive path: its operating voltage, continuous load, temporary peaks, and relationship to other circuits. OEM electrical engineers should also identify which loads run together and which paths require separation. A single current or voltage headline cannot define the electrical duty of a mixed power-and-control assembly.

Start with a circuit schedule, then add the operating conditions behind each entry. The objective is to give the supplier enough information to evaluate conductor sizing, contact loading, heat, and insulation without guessing how the machine behaves.

Why is total current insufficient for slip ring selection?

Total current hides how electrical demand is distributed across a slip ring. A heavily loaded feeder and lightly loaded control paths require a different review from equally loaded paths, even when a headline total looks similar. Identify each path, its function, and its load before comparing a slip ring current rating with the machine requirement.

First agree what the circuit count means. An equipment schematic may call an entire supply-and-return loop one circuit, while a selection table counts separate conductive channels across the rotating interface. List the conductors that must cross, including required returns, neutrals, and protective conductors. Map each conductor to its group so nothing disappears inside a label such as “motor supply.”

Do not divide total demand by the number of rings and assume that every path carries the average. Likewise, do not assume separate rings may be connected in parallel to increase capacity; any such arrangement needs an explicitly reviewed design.

JINPAT's LPT selection material separates voltage, current, and circuit quantity into distinct fields. Its high-current integrated slip ring material also describes configurable current capacity and circuit arrangements. Those catalog distinctions support a circuit-by-circuit enquiry; they do not establish the allowable loading of an unconfirmed configuration.

How should slip ring voltage be specified?

Specify operating voltage for each circuit or electrically equivalent group, including AC or DC, the normal range, and the reference used. Identify relevant differences between conductors and between conductors and the housing. A nominal supply label alone does not describe every insulation boundary, especially when separate power and control systems share the assembly.

For AC circuits, identify frequency and whether a stated value is RMS or peak. For DC circuits, describe relevant ripple or switching excursions instead of assuming the nominal value captures the waveform. State known temporary overvoltages separately, with their source and duration. Identify unknown operating conditions as open engineering inputs in the RFQ.

Keep the following terms separate:

• Operating voltage: the electrical condition the circuit experiences in service.

• Dielectric strength or withstand requirement: a defined insulation-stress requirement, interpreted with its specified conditions.

• Insulation resistance: resistance between the specified isolated conductors or conductive parts, measured under stated conditions.

JINPAT's through-bore material lists voltage, dielectric strength, and insulation resistance separately. A dielectric test value should therefore not be substituted for the operating-voltage rating. The broader distinction between working voltage and time-limited insulation stress also appears in Texas Instruments' isolation terminology; the semiconductor ratings in that document are not slip ring specifications.

How do continuous, peak, and inrush current differ?

Continuous current describes sustained demand under the stated operating conditions; peak current describes a temporary maximum, while inrush is associated with energizing a load. A useful electrical specification gives the magnitude, duration, and repetition of each relevant event. None of those inputs alone proves that a slip ring can carry the proposed load.

For example, a power supply can draw a startup transient while its input capacitance charges, then settle to a lower operating current. Tektronix's power-supply measurement note illustrates this behavior. A repeated process pulse needs separate description because its recurrence differs from an isolated power-on event.

Use current data from the electrical location that the slip ring will occupy. A motor nameplate, drive input, and drive output describe different parts of a system; identify the interface rather than treating those values as interchangeable.

Do not turn a catalog current rating into an assumed inrush allowance by applying an arbitrary multiplier. Where startup information is missing, request load data or measurement from the machine team before asking the supplier to confirm transient suitability.

What do simultaneous loading and duty mean for heat?

Thermal review needs the combination of circuit loads that actually occurs, together with how long each load remains active. Separate peak values cannot show whether several paths are heavily loaded at the same time. Provide normal production, startup, and credible worst-case operating states, plus the local thermal conditions around the installed slip ring.

Current through electrical resistance produces heat. More heavily loaded paths can increase the heat that the assembly must dissipate, so review the combined operating pattern instead of checking isolated catalog entries. An arithmetic average current is also not a complete description of a pulsed load's heating effect.

A compact operating-state table can show which groups are energized, the duration of each state, and the interval before repetition. If the controls prevent two loads from overlapping, describe the interlock or sequence that establishes the restriction. Do not claim reduced simultaneous demand solely because overlap seems unlikely.

Include the temperature expected near the slip ring, relevant enclosure conditions, and nearby heat sources. Reference the machine's existing motion specification without duplicating it. Let the supplier evaluate the combined conditions; a generic derating percentage or invented allowable temperature rise would conceal the application-specific review that is still needed.

How should grounding and circuit isolation be defined?

Grounding and circuit isolation should be specified as named electrical relationships, not as a single “ground included” option. Identify protective conductors, load returns, signal references, and shield terminations by function. State which paths may connect and which must remain separated, including relevant relationships to the housing, so the supplier can evaluate the intended circuit arrangement.

Distinguish protective and functional connections

Protective grounding serves electrical protection; functional grounding serves other operating purposes. Schneider Electric's grounding definitions make that distinction. A signal reference or cable shield should not be silently treated as a protective-earth conductor.

Label the required paths and describe the intended connections on both sides of the rotating interface. Where a protective path is required, provide the machine's applicable protection requirements for review. Do not presume that a metal housing or an unspecified mechanical contact provides the required protective continuity.

Define what must be isolated from what

List the boundaries explicitly: power group to control group, one supply group to another, and conductors to housing where applicable. Identify operating potential differences and any customer-defined insulation requirements for each boundary. Detailed acceptance procedures belong in the testing specification, rather than being inferred from a generic selection table.

Separation between conductive channels is different from galvanic isolation across the rotating interface. A conductive slip ring maintains an electrical path through its contacts. If the architecture requires a galvanic barrier across that interface, state the requirement explicitly; ordinary channel separation does not establish that capability.

Keep power and signal requirements distinguishable

Identify sensitive signal groups and the power loads sharing the assembly. JINPAT's capsule Ethernet material describes combined power and data transmission, with customization options including current, voltage, and connector types. The existence of an integrated product direction does not prove interference-free operation for every circuit layout. Record coexistence and separation needs, then handle protocol-specific performance in the signal specification.

What does a useful electrical RFQ entry look like?

A useful electrical RFQ entry connects a named path to a load state and an insulation relationship. The supplier should be able to identify what crosses the rotating interface, when the path carries current, and which other paths influence the review. Complete measured values or design requirements before submission; an unexplained blank is not a requirement.

The following examples are illustrative ways to improve an enquiry, not customer cases or JINPAT product configurations. They deliberately show the information to supply without inventing ratings.

Before sending the schedule, check that every current has a path, every peak has a time description, and every isolation requirement names both sides of the boundary. Distinguish confirmed data from unresolved inputs, and request a supplier response against the proposed configuration rather than a generic product-family maximum.

Use the completed electrical schedule as the basis for an engineering discussion with JINPAT. For the remaining machine, integration, and project information, continue with the slip ring specification checklist for an RFQ.
