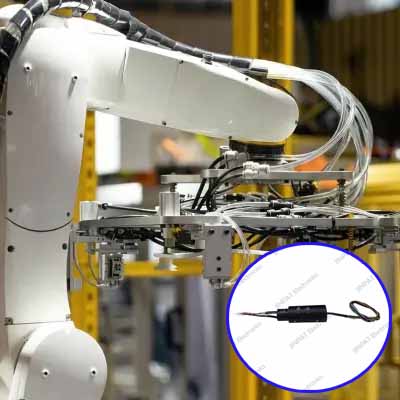

JINPAT LPPL Series: The Versatile Choice for Multi-Medium Automation Integration

With the rapid advancement of modern industrial automation, production equipment is evolving toward higher precision, greater integration, and miniaturization. For automation system architects and R&D engineers, a core challenge during project implementation is optimizing the spatial layout of rotary actuators while ensuring the stable transmission of complex signals and high-power energy. To meet this industry demand, JINPAT has leveraged its deep technical expertise to launch the LPPL series—an integrated pneumatic, hydraulic, and electric slip ring. Adopting a modular and integrated design philosophy, the product seamlessly combines multiple high-performance industrial functions, opening up new possibilities for the design of rotary connections in automation equipment.

Key Specifications Overview:

Physical Dimensions: 86mm diameter, 249.2mm total length—compact structure, ideal for embedded designs.

Electrical Specifications: 6 high-current channels (16A) + 3 independent signal channels.

Fluid Specifications: 4 independent fluid circuits, enabling efficient pneumatic/hydraulic transmission.

Environmental Adaptability: IP65 protection rating; operating temperature range of -20°C to +60°C.

Product Advantages:

This slip ring utilizes high-precision sealing technology to prevent fluid leakage during high-speed rotation while ensuring stable high-current transmission. Its excellent environmental adaptability makes it a core component in semiconductor equipment, high-end automated welding machines, and automated material handling systems.

JINPAT validates quality through data. If you are seeking a high-performance, integrated rotary connection solution, the LPPL series is the ideal choice to meet your engineering design requirements.

For more information on the internal structure or customized solutions for specific channel configurations, please contact us to obtain a detailed technical selection guide.
