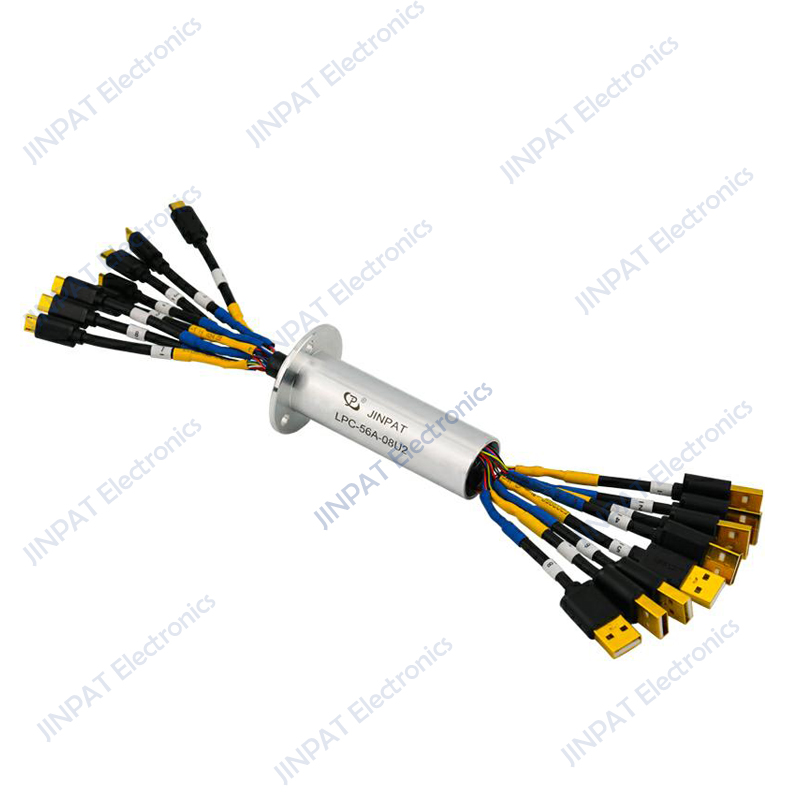

USB-2.0 slip rings
USB was designed to standardise the connection of peripherals to personal computers. It has largely replaced interfaces such as serial ports and parallel ports, and has become commonplace in a wide range of communication devices such as personal computers and mobile devices. USB is also gradually finding its way into machine vision, data collection, photographic equipment, digital TV, entertainment machines, etc.
USB JINPAT slip rings are specially designed for USB signal transmission. The USB JINPAT slip ring is characterised by sufficient signal channels and stable signal transmission. This series includes slip rings with USB 2.0 connector and USB 3.0 connector. The USB JINPAT slip ring is the perfect solution for transferring a large amount of data at high speed between electrical components.
Advantages of USB JINPAT slip rings:
High transmission, USB 3.0 theoretical transfer rate up to 5.0 Gbps, measured transfer rate > 2.0 Gbps.
Electrical transfer and electro-optical transfer are optional.
Capable of integrating multiple signal channels. Maximum channel capacity: 2 USB3.0 channels and 12 USB2.0 channels.
Superb connection materials ensure low electrical noise and extremely long service life.
Various types of connector to choose from.
| Electronic & Electruc | Mechanical | |||
| Circuits | Total | 40 CKT | Working Speed | 0~300rpm |
| Detail | 8xUSB2.0 | Contact Material | Gold to Gold | |
| Rating Voltage | 0~48VAC/DC | Housing Material | Aluminum Alloy | |
| Dielectric Strength | ≥1000VAC@50Hz | Lead Wire Length |
Stator: 1000mm Rotor: 1000mm |
|
| Insulation Resistance | ≥100MΩ@100VDC |
Dynamic Resistance Fluctuation Balue |
≤35mΩ | |
| Environment | Remarks | |||
| Working Temperature | -20°C~+60° | Application | / | |
| Working Humidity | ≤60%RH | Other | / | |
| IP | IP40 | Note:"P" stands dor power, "S" stands for signal | ||
