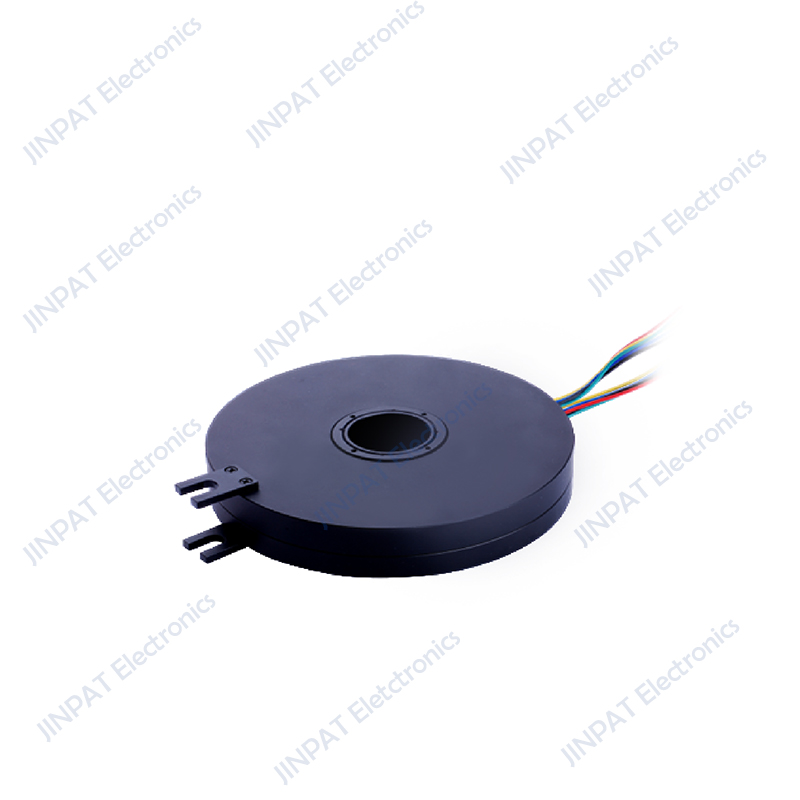

LPK025-0204
Due to the complexity of automation equipment design, the need for continuous transmission of electrical signals has become an essential element in line with performance levels. Moreover, it is not just the transmission of electrical signals, but the need for continuous rotation that is also important.
The electric slip rings used in this case can withstand high current loads and fulfil the rotation requirements. Furthermore, the modular aspect allows, first of all, the integration of separate channels for the transmission of electrical and data signals without any unnecessary interference
JINPAT places slip rings and other components, various sensors and motors in the equipment according to the requirements of the production equipment. Due to modularity, these items are added together with the slip rings
| Electrical & Electronics | Mechanical | Enviromental | |||
| Number of circuits | 2CKT | Rotating speed | 0~100rpm or higher | Temperature | -40°C~+55°C |
| Current | 4A/signal(optional) | Contact material | Precious metal | Humidity | ≤60%RH |
| Voltage | 240VAC/24VDC | Housing material | Aluminum alloy |
Protection Grade |
IP54 |
| Dielectric strength | 500VAC@50Hz | Torque | / | Others | |
| Insulation resistance | ≥500MΩ@500VDC | Wire length |
Stator side：300mm Rotor side：300mm |
Life span | Can be customized |
| Electrical noise | ≤30mΩ(at 50rpm) | ||||
