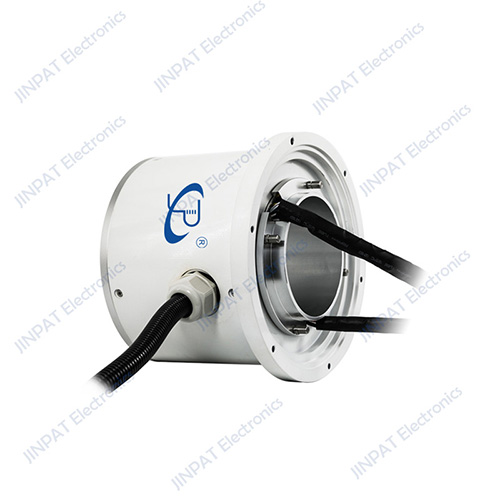

Rotary slip rings for cloud ladder fire trucks are specialized connectors designed to ensure seamless transmission of power, signals, and data between stationary and rotating parts of aerial fire truck ladders. These slip rings are crucial for maintaining smooth and uninterrupted operation of the ladder during extension, rotation, and positioning, allowing for precise control of firefighting and rescue operations. Built to withstand the demanding conditions of fire service environments, including high heat, vibrations, and constant use, they provide reliable performance and durability. With customizable options to meet specific truck and ladder requirements, rotary slip rings for cloud ladder fire trucks enhance safety, efficiency, and operational effectiveness, ensuring reliable functionality during emergency situations.
| Electrical & Electronics | Mechanical | Enviromental | ||||
| Loop number | total | 18 | Working speed |
0~100rpm | Operating temperature |
-30°C~+80°C |
| Details | 4*40A+12S+2 CAN bus |
Contact material |
Precious metals |
Working humidity |
≤95%RH | |
| Operating voltage | 220VAC |
Shell material |
Aluminium alloy | Class of protection | IP67 | |
| Compressive strength | ≥500MΩ@50Hz |
Conductor length |
Stator 2.4mm Rotor :1.5m |
Others | ||
| Insulation resistance | ≥500MΩ@500VDC |
Dynamic resistance fluctuation value |
/ | Life span | Can be customized | |
For more information about this slip ring product, feel free to reach out to JINPAT.
We are committed to providing you with a tailored solution that meets your needs!
