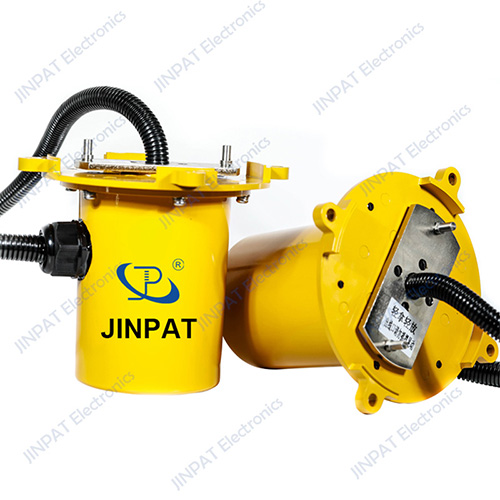

Rotary Slip Rings for 50T Truck Cranes
Rotary slip rings for 50T truck cranes are designed to ensure efficient transmission of power, signals, and data between stationary and rotating parts of heavy-duty mobile cranes.
Rotary slip rings for 50T truck cranes are designed to ensure efficient transmission of power, signals, and data between stationary and rotating parts of heavy-duty mobile cranes. Specifically built for 50-ton capacity cranes, these slip rings enable smooth, continuous operation during lifting and rotating operations, even under challenging construction and industrial environments. Constructed with durable materials to withstand harsh weather, vibrations, and high loads, these slip rings provide exceptional reliability and longevity. With customizable options to meet specific crane requirements, rotary slip rings for 50T truck cranes enhance operational efficiency, safety, and minimize maintenance, ensuring reliable performance throughout the crane's lifecycle.
| Electrical & Electronics | Mechanical | Enviromental | ||||
| Loop number | total | 14 | Working speed |
0~10rpm | Operating temperature |
-30°C~+80°C |
| Details | 3*30A+9S+2 CAN bus |
Contact material |
Precious metal |
Working humidity |
≤95%RH | |
| Operating voltage | 360VDC |
Shell material |
Aluminium alloy | Class of protection | IP67 | |
| Compressive strength | ≥500VAC@50Hz |
Conductor length |
Stator :2.4m Rotor :1.5m |
Others | ||
| Insulation resistance | ≥500MΩ@500VDC |
Dynamic resistance fluctuation value |
/ | Life span | Can be customized | |
For more information about this slip ring product, feel free to reach out to JINPAT.
We are committed to providing you with a tailored solution that meets your needs!
