Rotary Slip Rings for 25T Truck Cranes
Rotary slip rings for 25T truck cranes are designed to facilitate reliable power, signal, and data transmission between the stationary and rotating parts of mobile cranes.
Rotary slip rings for 25T truck cranes are designed to facilitate reliable power, signal, and data transmission between the stationary and rotating parts of mobile cranes. Specifically engineered for 25-ton capacity truck cranes, these slip rings ensure smooth, uninterrupted operation during lifting and rotating movements. Built to withstand the tough conditions of construction sites, including heavy vibrations, dust, and harsh weather, these slip rings offer exceptional durability and long-lasting performance. With low maintenance requirements and customizable configurations, rotary slip rings for 25T truck cranes enhance crane efficiency, safety, and overall operational reliability.

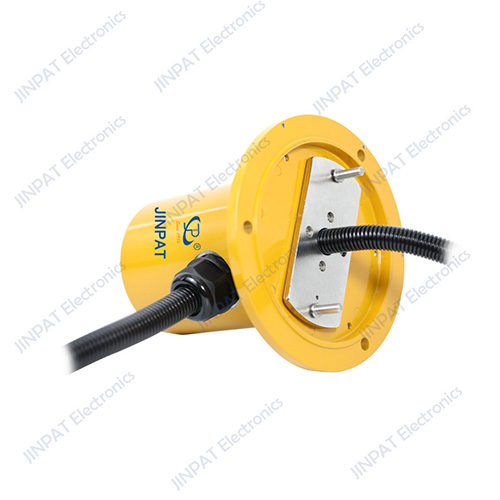

LPTS000-0330-1105 - 25T Truck Crane
|
Electrical & Electronics |
Mechanical | Enviromental | |||
|
Number of circuits |
14CKT | Rotating speed | 0~100rpm | Temperature | -30°C~+80°C |
| Current | 3×30A+9S+2×CANBUS +1×throttle signal |
Contact material | Precious metal | Humidity | ≤95%RH |
|
Voltage |
36VDC | Housing material | Aluminum alloy | Protection Grade | IP65 |
| Dielectric strength |
≥500VAC@50Hz |
Wire type | / | Others | |
| Insulation resistance |
≥500MΩ@500VDC |
Wire length | / | Life span | Can be customized |
For more information about this slip ring product, feel free to reach out to JINPAT.
We are committed to providing you with a tailored solution that meets your needs!
