Ship Winch Rotary Slip Rings

Product Details

Marine winch slip rings are essential rotary connectors designed for the reliable transmission of power, signals, and data in marine winch systems. These slip rings ensure uninterrupted operation during the rotation of the winch drum, enabling precise control of mooring, anchoring, and towing processes on ships and offshore platforms. Built to withstand the harsh conditions of the marine environment, including saltwater corrosion, high humidity, and extreme temperatures, marine winch slip rings provide exceptional durability and performance. With customizable configurations to suit various winch types, they play a critical role in enhancing the efficiency, safety, and reliability of marine and offshore operations.

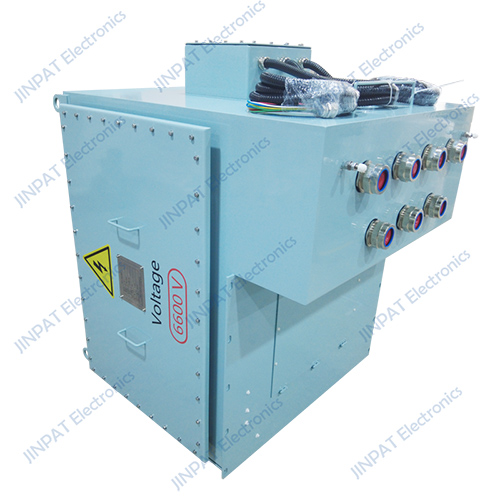

LPA000-03700-1PE-0615-F006

Electrical & Electronics		Mechanical		Enviromental
Voltage	6600VAC/220V	Rotating speed	0~30rpm	Protection level	IP56
Current	700A * 3 channels(power) PE * 1 channel (power) 15A * 6 channels (signal)	Rotation method	The electric brush remains stationary while the ring rotates	working temperature	-20°C~+45°C
Dielectric strength	30000VAC@50Hz(P) 500VAC@50Hz（s）	Installation method	/	Working humidity	≤95%RH
Insulation resistance	Power Ring: 100M Ω @ 2500VDC Signal loop: 100M Ω @ 250VDC	Wire length	Based on the external drawing	Working humidity	≤95%RH

LPA000-0250-FO04 - 15T cable towing winch

Electrical & Electronics		Mechanical		Enviromental
Number of circuits	6CKT	Rotating speed	0~100rpm	Temperature	-20°C~+75°C
Current	2×50A+4×Fiber Optics	Contact material	copper graphite	Humidity	≤90%RH
Voltage	4000VAC	Housing material	Stainless steel 316	Protection Grade	IP65
Dielectric strength	≥8000VAC@50Hz ≥1000VAC@50Hz (signal)	Wire type	/	Others
Insulation resistance	≥1000MΩ@500VDC ≥100MΩ@300VDC (signal)	Wire length	2M	Life span	Can be customized

For more information about this slip ring product, feel free to reach out to JINPAT.

We are committed to providing you with a tailored solution that meets your needs!
