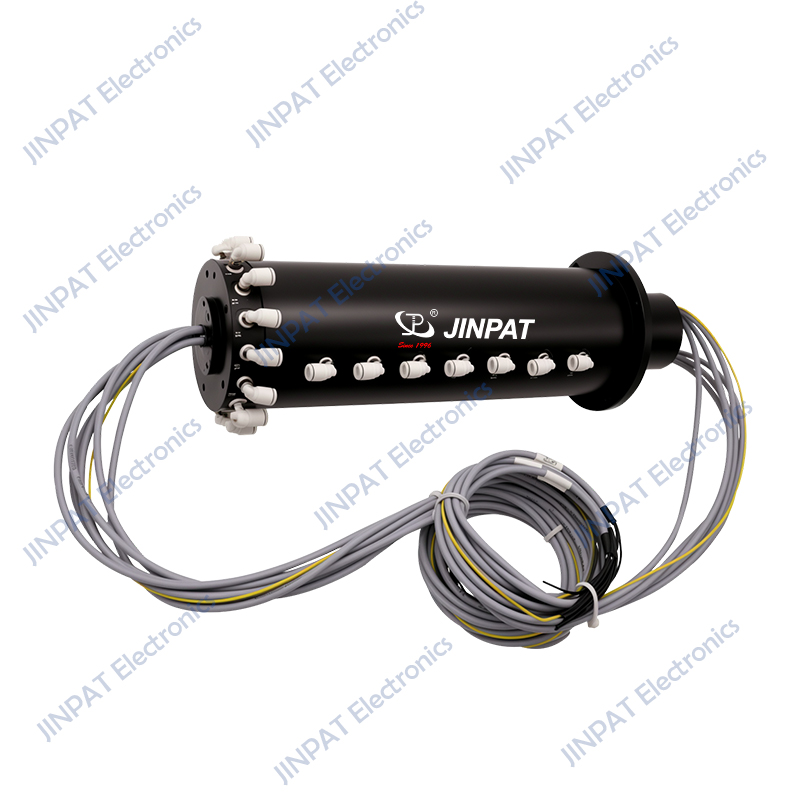

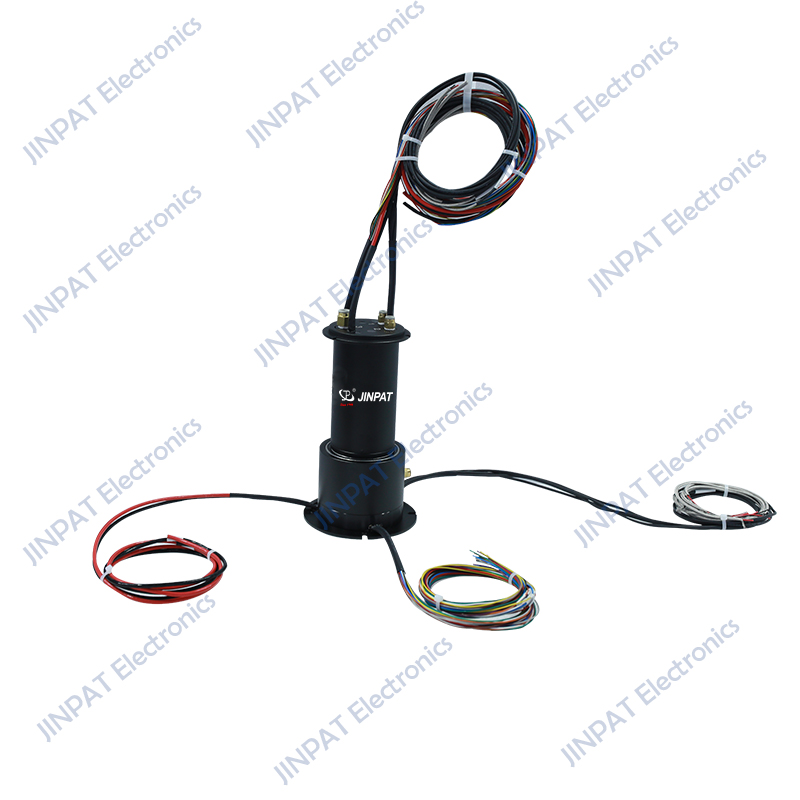

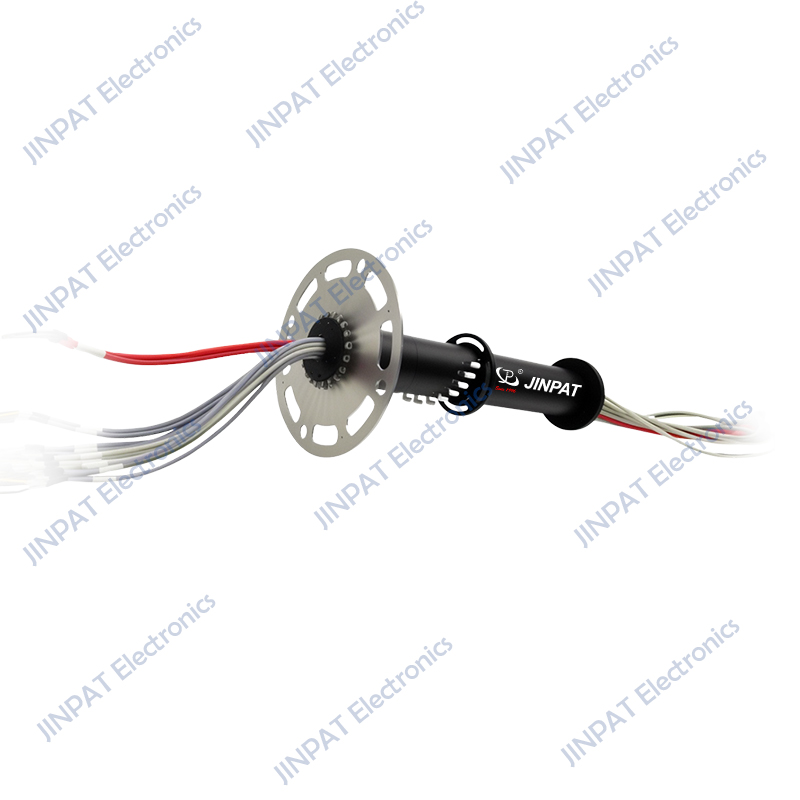

LM Electro-Pneumatic Rotary Union with Capsule Slip Ring
JINPAT LM Cap-Type Integrated Series: Integrated slip rings supporting 1-24 channels of gas-liquid and up to 24 channels of telecommunications synchronous transmission.
JINPAT LM Series: Electro-Pneumatic/Hydraulic Integrated Rotary Solution
This series of slip rings is designed for complex operating conditions, achieving efficient integrated transmission of electrical signals and gas/liquid media. Featuring a compact cap-type structure, it supports multi-channel pneumatic/vacuum transmission and up to 24 current supplies. 30 years of process expertise ensures zero leakage and high signal fidelity during continuous 360° rotation.
| LM Electro-Pneumatic Rotary Union with Capsule Slip Ring | ||||||||||
Model Code |
Passages(Gas/Flow) | Medium | Size | Joint thread | Flow Orifice | Power Circuits | ||||
| LPPA-LM0101-0602 | 1 in 1 out | Air, Vacuum | Φ40*Φ6*60.6 | M5 | Φ3 | 6*2A |
||||
| LPPA-LM0101-1202 | Air, Vacuum | Φ40*Φ6*68.4 | M5 | Φ3 | 12*2A | |||||
| LPPA-LM0101-1802 | Air, Vacuum | Φ40*Φ6*74.9 | M5 | Φ3 | 18*2A | |||||
| LPPA-LM0101-2402 | Air, Vacuum | Φ40*Φ6*84.3 | M5 | Φ3 | 24*2A | |||||
| LPPA-LM0201-0602 | 2 in 2 out | Air, Vacuum | Φ40*Φ6*69.6 | M5 | Φ3 | 6*2A | ||||
| LPPA-LM0201-1202 | Air, Vacuum | Φ40*Φ6*77.4 | M5 | Φ3 | 12*2A | |||||
| LPPA-LM0201-1802 | Air, Vacuum | Φ40*Φ6*83.9 | M5 | Φ3 | 18*2A | |||||
| LPPA-LM0201-2402 | Air, Vacuum | Φ40*Φ6*93.3 | M5 | Φ3 | 24*2A | |||||
| LPPA-LM0401-0602 | 4 in 4 out | Air, Vacuum | Φ40*Φ6*87.6 | M5 | Φ3 | 6*2A | ||||
| LPPA-LM0401-1202 | Air, Vacuum | Φ40*Φ6*95.4 | M5 | Φ3 | 12*2A | |||||
| LPPA-LM0401-1802 | Air, Vacuum | Φ40*Φ6*101.9 | M5 | Φ3 | 18*2A | |||||
| LPPA-LM0401-2402 | Air, Vacuum | Φ40*Φ6*113.3 | M5 | Φ3 | 24*2A | |||||
| LPPA-LM0601-0602 | 6 in 6 out | Air, Vacuum | Φ40*Φ6*105.6 | M5 | Φ3 | 6*2A | ||||
| LPPA-LM0601-1202 | Air, Vacuum | Φ40*Φ6*113.4 | M5 | Φ3 | 12*2A | |||||
| LPPA-LM0601-1802 | Air, Vacuum | Φ40*Φ6*119.9 | M5 | Φ3 | 18*2A | |||||
| LPPA-LM0601-2402 | Air, Vacuum | Φ40*Φ6*129.3 | M5 | Φ3 | 24*2A | |||||
| LPPA-LM0801-0602 | 8 in 8 out | Air, Vacuum | Φ40*Φ6*123.6 | M5 | Φ3 | 6*2A | ||||
| LPPA-LM0801-1202 | Air, Vacuum | Φ40*Φ6*131.4 | M5 | Φ3 | 12*2A | |||||
| LPPA-LM0801-1802 | Air, Vacuum | Φ40*Φ6*137.9 | M5 | Φ3 | 18*2A | |||||
| LPPA-LM0801-2402 | Air, Vacuum | Φ40*Φ6*147.3 | M5 | Φ3 | 24*2A | |||||
| LPPA-LM1001-0602 | 10 in 10 out | Air, Vacuum | Φ45*Φ6*142.6 | M5 | Φ3 | 6*2A | ||||
| LPPA-LM1001-1202 | Air, Vacuum | Φ45*Φ6*150.4 | M5 | Φ3 | 12*2A | |||||
| LPPA-LM1001-1802 | Air, Vacuum | Φ45*Φ6*156.9 | M5 | Φ3 | 18*2A | |||||
| LPPA-LM1001-2402 | Air, Vacuum | Φ45*Φ6*166.3 | M5 | Φ3 | 24*2A | |||||
| LPPA-LM1201-0602 | 12 in 12 out | Air, Vacuum | Φ50*Φ6*175.6 | M5 | Φ3 | 6*2A | ||||
| LPPA-LM1201-1202 | Air, Vacuum | Φ50*Φ6*183.4 | M5 | Φ3 | 12*2A | |||||
| LPPA-LM1201-1802 | Air, Vacuum | Φ50*Φ6*189.9 | M5 | Φ3 | 18*2A | |||||
| LPPA-LM1201-2402 | Air, Vacuum | Φ50*Φ6*199.3 | M5 | Φ3 | 24*2A | |||||
| LPPA-LM1601-0602 | 16 in 16 out | Air, Vacuum | Φ54*Φ6*220.6 | M5 | Φ3 | 6*2A | ||||
| LPPA-LM1601-1202 | Air, Vacuum | Φ54*Φ6*228.4 | M5 | Φ3 | 12*2A | |||||
| LPPA-LM1601-1802 | Air, Vacuum | Φ54*Φ6*234.9 | M5 | Φ3 | 18*2A | |||||
| LPPA-LM1601-2402 | Air, Vacuum | Φ54*Φ6*244.3 | M5 | Φ3 | 24*2A | |||||
| LPPA-LM2401-0602 | 24 in 24 out | Air, Vacuum | Φ65*Φ6*326.6 | M5 | Φ3 | 6*2A | ||||
| LPPA-LM2401-1202 | Air, Vacuum | Φ65*Φ6*334.4 | M5 | Φ3 | 12*2A | |||||
| LPPA-LM2401-1802 | Air, Vacuum | Φ65*Φ6*340.9 | M5 | Φ3 | 18*2A | |||||
| LPPA-LM2401-2402 | Air, Vacuum | Φ65*Φ6*350.3 | M5 | Φ3 | 24*2A | |||||
