Medium Type ：Air
Channel number ：30 channel
Connecting calibre ：G1/8"

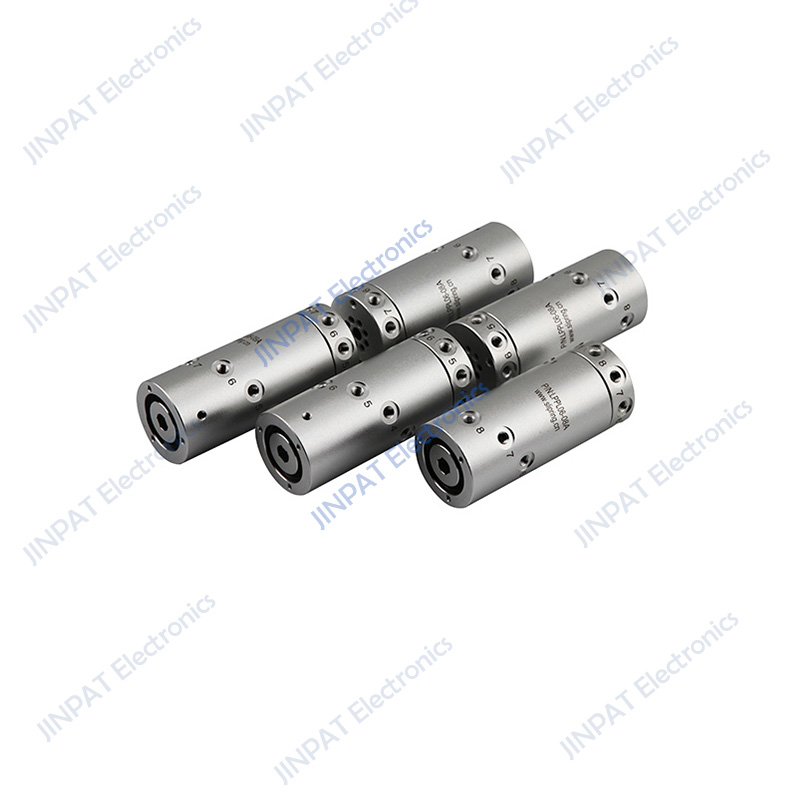

The LPP rotary unions can perform rotation of 360 degrees. The medium includes inert gas such as compressed air, steam, vacuum, nitrogen, hydrogen, etc. It can integrate slip ring to transport various control signals. The sealing surface and sealing ring are made of special materials, with the advantages of wear resistance, long life, corrosion resistance, and no leakage. Customers can install LPP rotary unions independently according to the application environment.
LPPL018-30A-EN Outline Drawing
Rotary Unions & Joints Spec |
Mechanical Data | |||
Max.Operating Pressure |
0-1Mpa |
Working Speed |
0~100RPM |
|
Medium Type |
Air |
Inner diameter |
φ18mm |
|
| Channel number | 30 | Connecting calibre | G1/8" | |
| Windpope diameter | φ8mm | Housing Material | Aluminum Alloy | |
No-load torque |
≤30 N.m |
IP |
/ |
|
