LPKS005-0105 Pancake Slip Rings

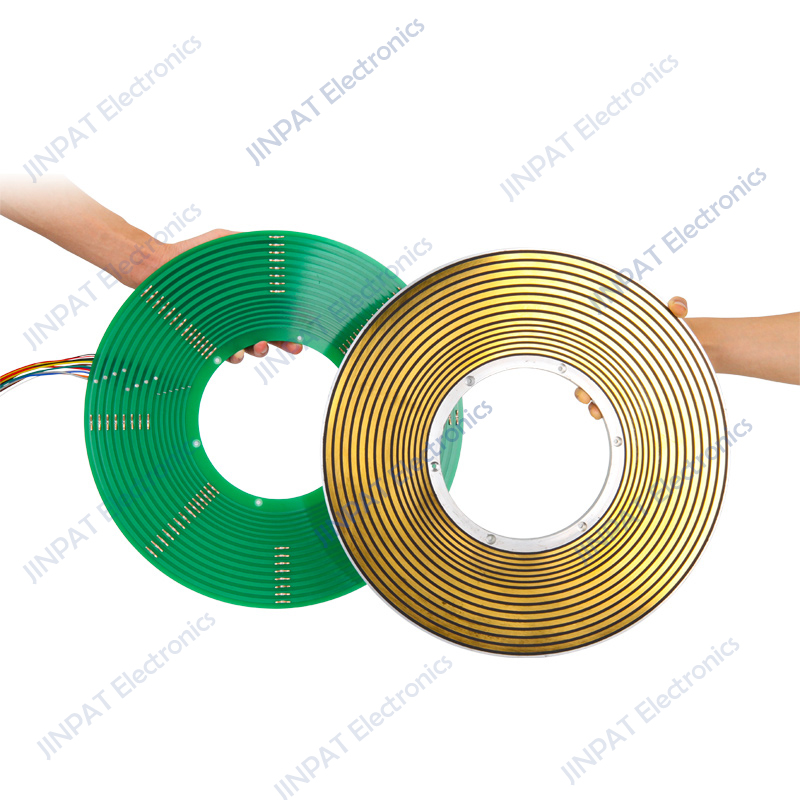

The LPK Pancake Slip Ring is a solution provided for equipment with limited axial space.
The LPK Pancake Slip Ring is a solution provided for equipment with limited axial space. Its ring path is arranged in a concentric circle on the same horizontal plane, saving height space.
Advantage
◆ Transfers control and data signals
◆ Fiber brush technology provides maintenance-free operation (no lubrication required)
◆ Modular design meets special requirements through off-the-shelf manufacturing techniques
◆ Customized configurations for your application
| LPKS005 Series Pancake Slip Rings | |||||
| Model Code | Circuits | Voltage | Current (A) | Outer diameter x Length (mm) |
الدائرة المرجعية (د)/(مم) |
| LPKS005-0105 | 1 | 240 VDC | 5 | Ф34×7 | 30 |
| LPKS005-0205 | 2 | 240 VDC | 5 | Ф42×7 | 38 |
| LPKS005-0305 | 3 | 240 VDC | 5 | Ф52×7 | 46 |
| LPKS005-0405 | 4 | 240 VDC | 5 | Ф60×7 | 54 |
| LPKS005-0505 | 5 | 240 VDC | 5 | Ф68×7 | 63 |
| LPKS005-0605 | 6 | 240 VDC | 5 | Ф76×7 | 70 |
| LPKS005-0705 | 7 | 240 VDC | 5 | Ф84×7 | 78 |
| LPKS005-0805 | 8 | 240 VDC | 5 | Ф92×7 | 86 |
| LPKS005-0905 | 9 | 240 VDC | 5 | Ф100×7 | 94 |
| LPKS005-1005 | 10 | 240 VDC | 5 | Ф108×7 | 102 |
