LPT120 Series Through Bore Slip Rings
The slip ring can improve system performance by simplifying operations.

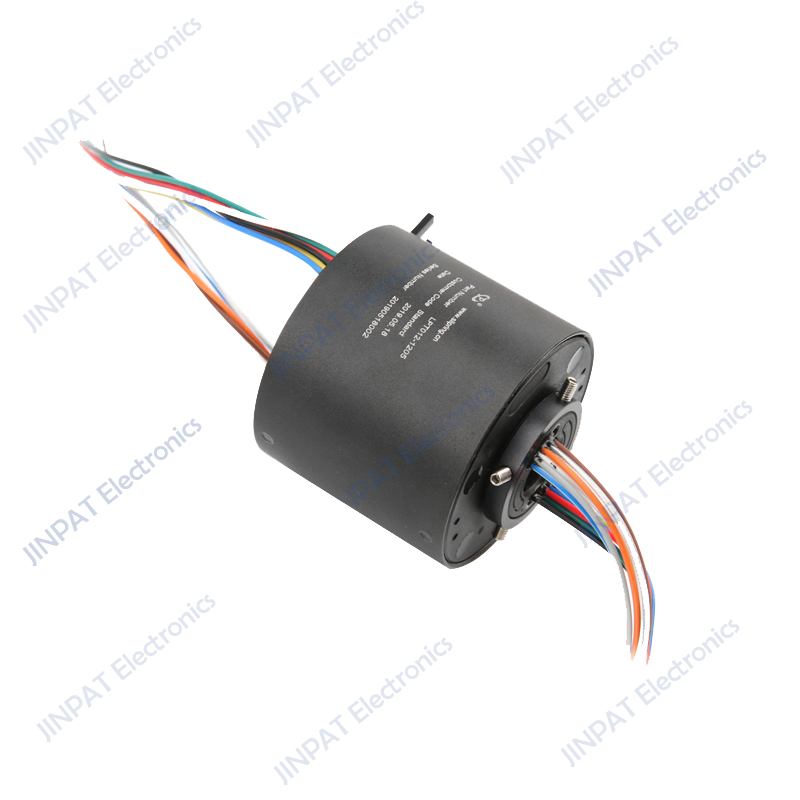

LPT120 series through hole slip ring
Slip rings can be used in any electromechanical system that requires continuous, unrestricted rotation while transmitting power or data from a fixed structure to a rotating structure. Slip rings are also known as rotating electrical interfaces, accumulators, rotors or commutators. Slip rings can improve system performance by simplifying operation and eliminating damage caused by wires dangling from moving links.
Electronic & Electric |
Mechanical | |||
Circuits |
Total |
6 CKT |
Working Speed |
0~300rpm |
Detail |
5A |
Inner Diameter |
∅120mm |
|
Rating Voltage |
240VAC/DC |
Contact Material |
Precious Metal |
|
Dielectric Strength |
1000VAC@50Hz |
Shell Material |
Aluminum alloy |
|
Insulation Resistance |
≥500MΩ@500VDC |
Lead Wire Length |
Stator:300mm Rotor:300mm |
|
Environment |
Remarks | |||
Working Temperature |
-20°C~+60°C |
Application |
/ |
|
Working Humidity |
≤60%RH |
Other |
/ |
|
IP |
IP54 |
Note: "P" stands for power, "S" stands for signal. |
||
