LPT009-0204-05S Through Bore Slip Rings
A slip ring can improve system performance by simplifying operations and eliminating frayed wires dangling from moving connections.

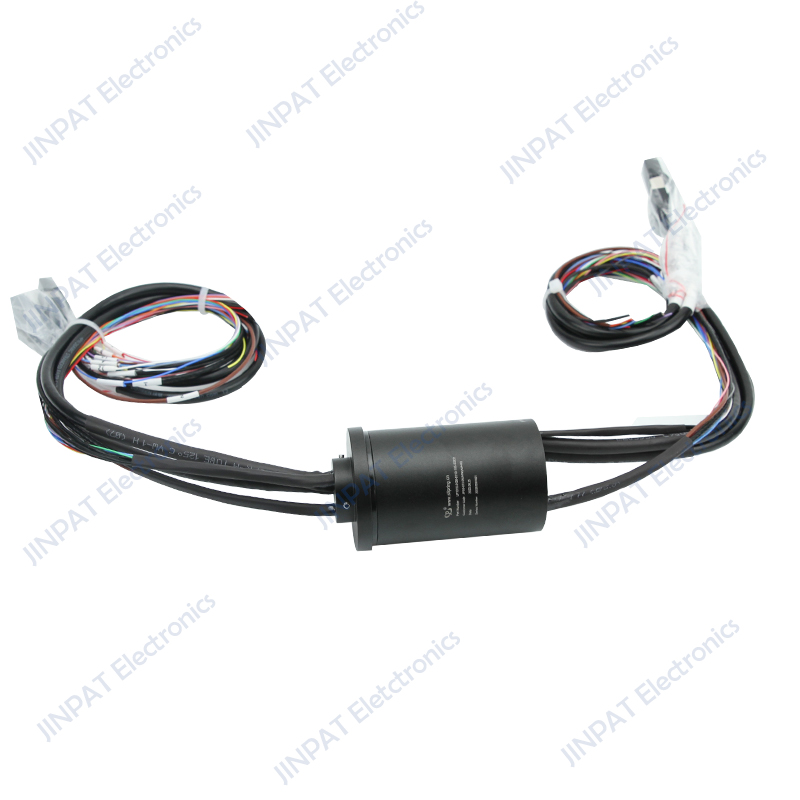

LPT009-0204-05S - Through Bore Slip Rings
A slip ring can be used in any electromechanical system that requires continuous, unrestricted rotation while transferring power or data from a fixed structure to a rotating structure. The slip ring is also called the rotating electrical interface, collector, rotor or switch. A slip ring can improve system performance by simplifying operations and eliminating frayed wires dangling from moving connections.
LPT009-0204-05S Outline Drawing
Electronic & Electric |
Mechanical | |||
Circuits |
Total |
7 CKT |
Working Speed |
0~300rpm |
Detail |
2*4A+5 circults signal |
Inner Diameter |
∅9.5mm |
|
Rating Voltage |
24V |
Contact Material |
Precious Metal |
|
Dielectric Strength |
500VAC@50Hz |
Shell Material |
Engineering plastic |
|
Insulation Resistance |
≥300MΩ@500VDC |
Lead Wire Length |
Stator:300mm Rotor:300mm |
|
Environment |
Remarks | |||
Working Temperature |
-20°C~+60°C |
Application |
/ |
|
Working Humidity |
≤60%RH |
Other |
/ |
|
IP |
/ |
Note: "P" stands for power, "S" stands for signal. |
||
