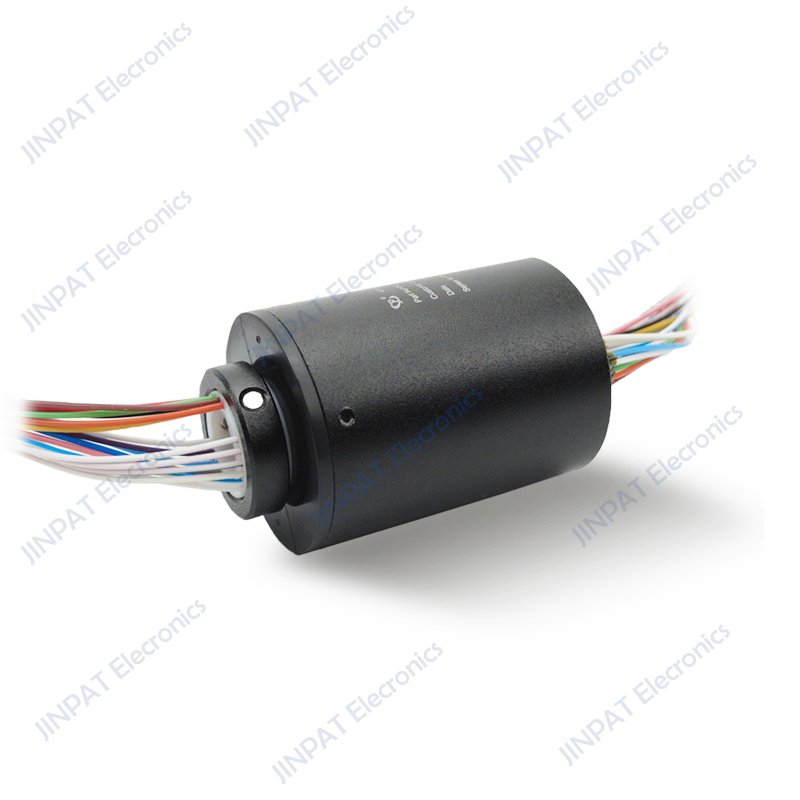

LPT009-1802-HS Through Bore Slip Rings
Through-hole slip rings can improve system performance by simplifying operation and eliminating frayed wires dangling from moving connections.
LPT009-1802-HS Through Bore Slip Rings
A slip ring can be used in any electromechanical system that requires continuous, unrestricted rotation while transferring power or data from a fixed structure to a rotating structure. The slip ring is also called the rotating electrical interface, collector, rotor or switch. The slip ring can improve system performance by simplifying operations and eliminating frayed wires dangling from moving connections.
Electronic & Electric |
Mechanical | |||
Circuits |
Total |
18 CKT |
Working Speed |
0~300rpm |
Detail |
18*2A |
Inner Diameter |
∅9.5mm |
|
Rating Voltage |
240VAC/DC |
Contact Material |
Precious Metal |
|
Dielectric Strength |
500VAC@50Hz |
Shell Material |
Aluminum alloy |
|
Insulation Resistance |
≥500MΩ@500VDC |
Lead Wire Length |
Stator:400mm Rotor:400mm |
|
Environment |
Remarks | |||
Working Temperature |
-20°C~+60°C |
Application |
/ |
|
Working Humidity |
≤60%RH |
Other |
/ |
|
IP |
IP44 |
Note: "P" stands for power, "S" stands for signal. |
||
