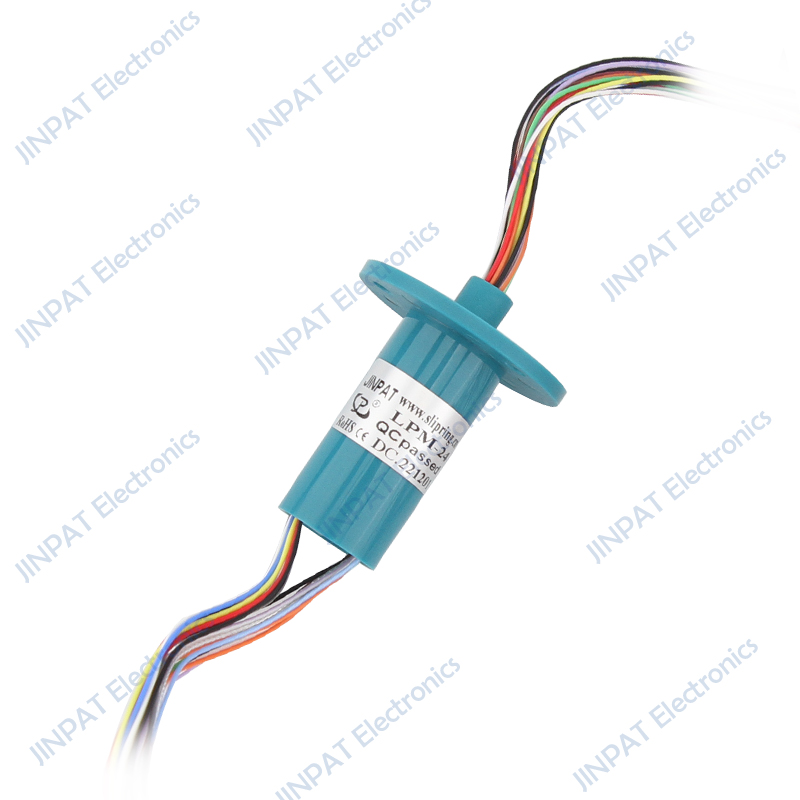

LPM miniature cap slip ring outer diameter is 15.5mm, length 34mm, 24channel 2*A, with high standard surface treatment process, gold to gold contact, to ensure low contact resistance and long working life, can meet all kinds of environmental protection standards in Europe, America and other developed countries and regions, can be customised with high life.
MAIN APPLICATIONS:Spruce 、Robotics 、Medical Equipment、Radar Antenna、CCTV security monitoring equipment
| Electronic&Electric |
Mechanical |
|||
| Circuits | Total | 24CKT |
Working Speed | 0~300rpm |
| Detail | 24x2A | Contact Material | Gold to Gold | |
| Rating Voltage | 110V AC/DC | Housing Material | Engineering plastics | |
| Dielectric Strength | ≥300VAC@50Hz |
Lead Wire Length | Stator:250±5mm Rotor:250±5mm |
|
| Insulation Resistance | ≥500MΩ@300VDC |
Dynamic Resistance Fluctuation Value |
≤35mΩ | |
| Environment |
Remarks | |||
| Working Temperature | -20°C~+60°C | Application | / | |
| Working Humidity | ≤60%RH | Other | / | |
| IP | IP40 | |||
LPM-24-Outline Drawing
LPM-24YB -Outline Drawing
LPM-24YD -Outline Drawing
LPM-24YJ-Outline Drawing
LPM-24YU-Outline Drawing
