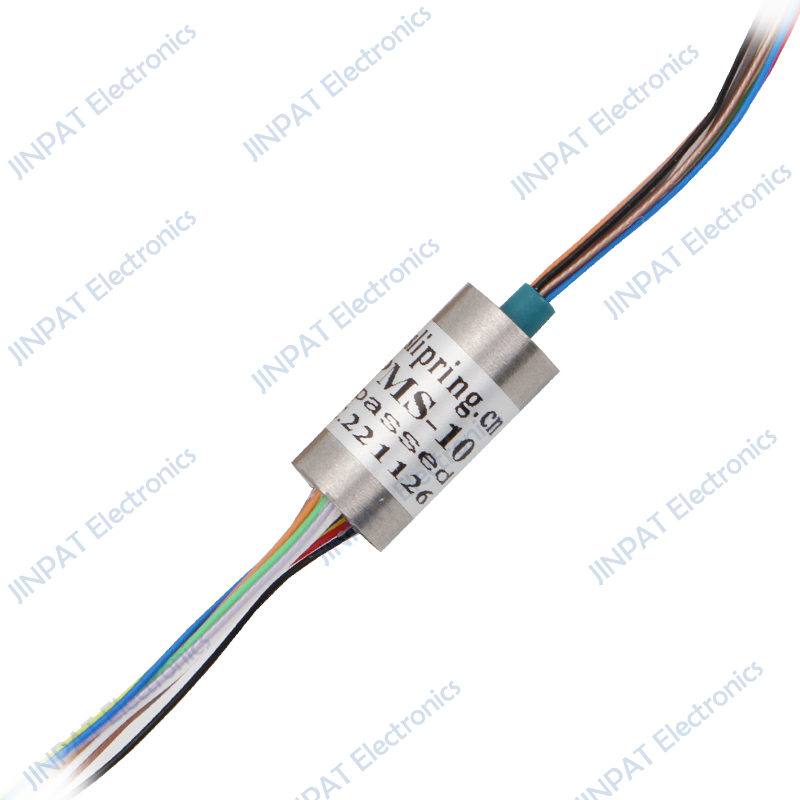

LPMS Ultra Miniature Cap Conductive Slip Rings OD 6.8~7.4mm, length 13.5mm, 10-channel*1A, small form factor, high precision design, high and low temperature resistance, low contact resistance of the product, low torque, reliable operation. This series of slip rings are used for high precision instruments and equipment, suitable for the environment of harsh installation space.
Product Cases：Spruce |Robotics |Medical Equipment|Radar Antenna|CCTV security monitoring equipment
| Electronic&Electric |
Mechanical |
|||
| Circuits | Total | 10CKT |
Working Speed | 0~300rpm |
| Detail | 10x2A | Contact Material | Gold to Gold | |
| Rating Voltage | 48V AC/DC | Housing Material | Stainless steels | |
| Dielectric Strength | ≥100VAC@50Hz |
Lead Wire Length | Stator:250±5mm Rotor:250±5mm |
|
| Insulation Resistance | ≥100MΩ@100VDC |
Dynamic Resistance Fluctuation Value |
≤35mΩ | |
| Environment |
Remarks | |||
| Working Temperature | -20°C~+60°C | Application | / | |
| Working Humidity | ≤60%RH | Other | / | |
| IP | IP40 | |||

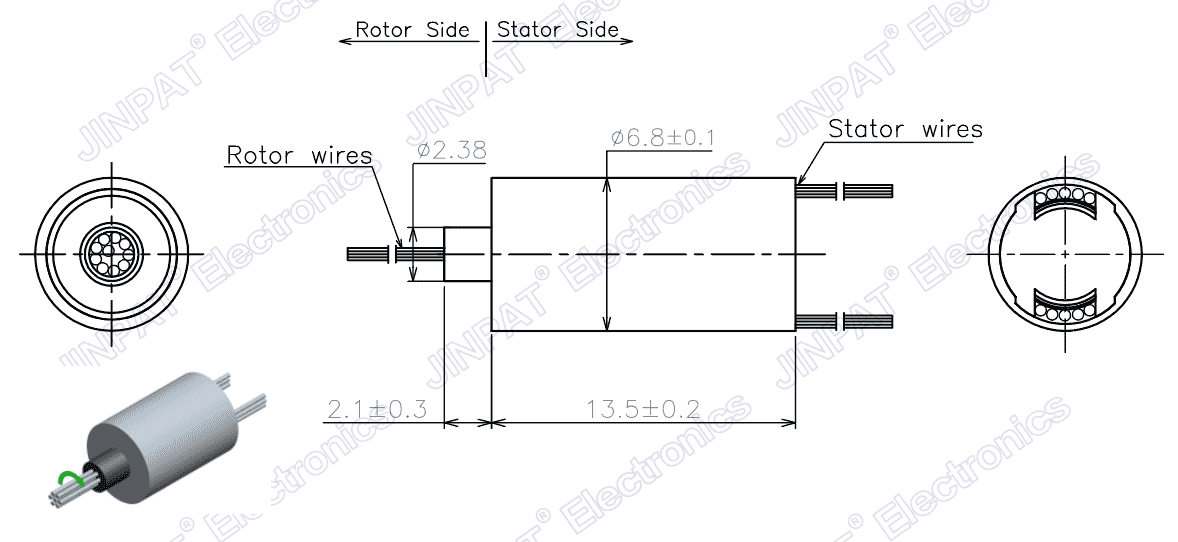

LPMS-10-Outline Drawing

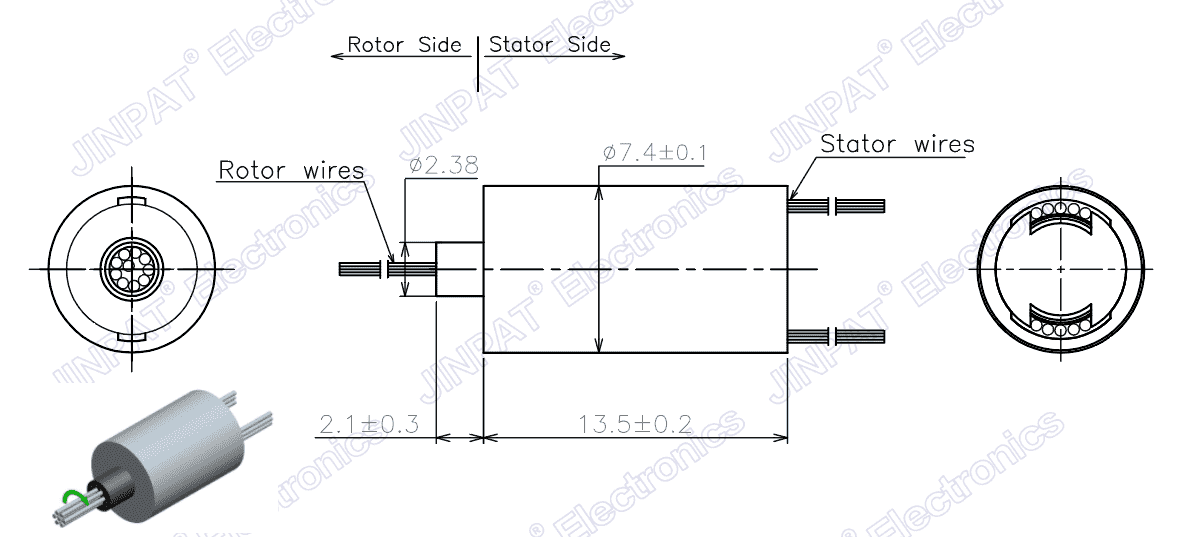

LPMS-10YP-Outline Drawing
