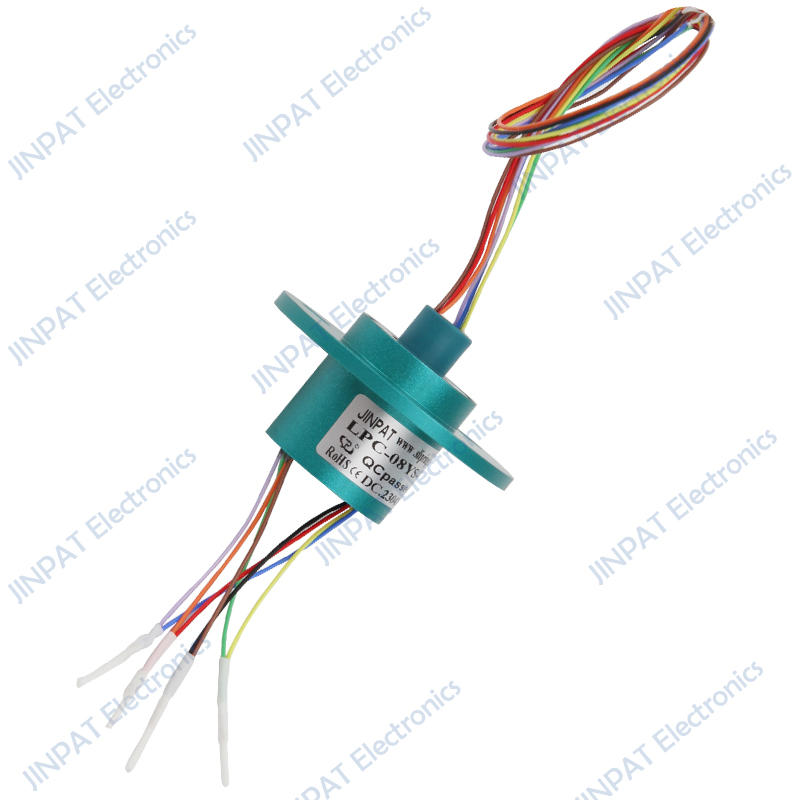

LPC-08YS Capsule Slip Ring
LPC-8YSstandard medium-sized cap slip ring, OD 22mm, length 23mm, 8channel*2A, adopts domestic leading military grade high standard surface treatment process, high design precision, small appearance, easy installation.
LPC-8YSstandard medium-sized cap slip ring, OD 22mm, length 23mm, 8channel*2A, adopts domestic leading military grade high standard surface treatment process, high design precision, small appearance, easy installation. The contacts are made of gold-to-gold material to ensure extremely low contact resistance and long working life, which can meet all kinds of environmental protection standards of developed countries and regions such as Europe and the United States, and can be customised for ultra-high life.
◈Customised high speed, high life and high protection slip rings are available, which can be integrated with a variety of signals, such as: Ethernet, USB, RS, LVDS, Canbus, FireWire, SDI, HDMI and so on.
◈ Slip Rings are available in number of circuits, currents, sizes, speeds, sealing grades, case materials, etc. , and can be mass-produced.
| Electronic&Electric |
Mechanical |
|||
| Circuits | Total | 8CKT |
Working Speed | 0~300rpm |
| Detail | 8x2A | Contact Material | Gold to Gold | |
| Rating Voltage | 240V AC/DC | Housing Material | Engineering plastics | |
| Dielectric Strength | ≥500VAC@50Hz |
Lead Wire Length | Stator:250±5mm Rotor:250±5mm |
|
| Insulation Resistance | ≥100MΩ@500VDC |
Dynamic Resistance Fluctuation Value |
≤35mΩ | |
| Environment |
Remarks | |||
| Working Temperature | -20°C~+60°C | Application | / | |
| Working Humidity | ≤60%RH | Other | / | |
| IP | IP40 | |||

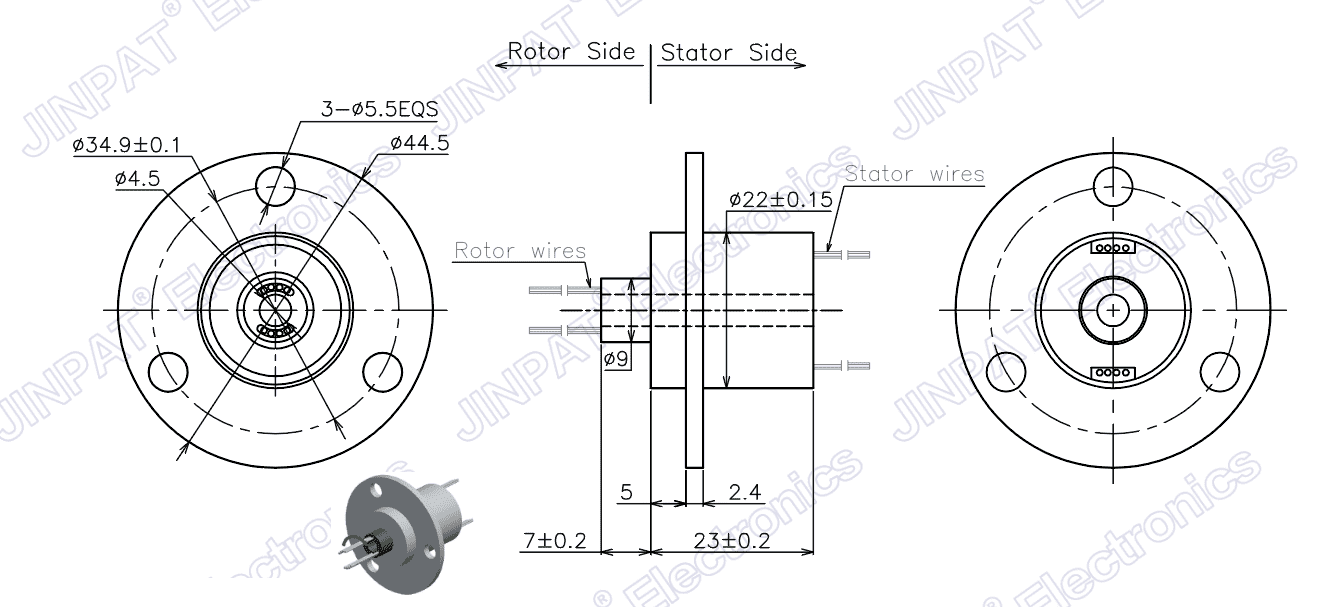

LPC-8YS -Outline Drawing
